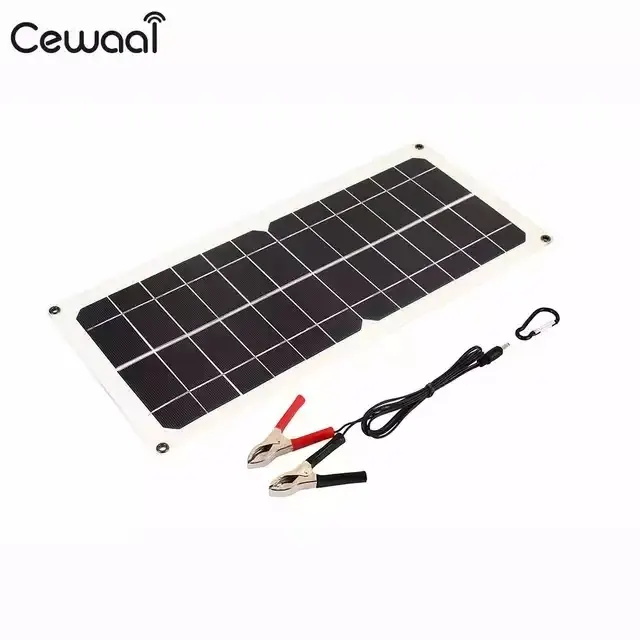

Mono Cells Panel 10W 12V

(0 reviews)

Get Price

(143) Views

(0) Contacts

Contact Company

Shenzhen Jinhong Xingtai Technology Co., Ltd

Shenzhen, China

(418) Views

(0) Contacts

                                                            Power
                                                            10W

                                                            Operating voltage
                                                            12V

                                                            Output current
                                                            0.83A

                                                            Short circuit voltage
                                                            13V

                                                            Short circuit current
                                                            0.78A

                                                            Maximum USB regulated output
                                                            5V 2100ma

                                                            Regulator output
                                                            12V 2100ma

                                                            Cell
                                                            Monocrystalline

                                                            Number of cells
                                                            24 pieces

                                                            Cell size
                                                            125x31.25mm

                                                            Panel size
                                                            420x190x3mm

                                                            Net weight
                                                            280 g

                                                            Total weight
                                                            470 grams

Characteristics of Mono Cells Panel :

Monocrystalline solar cells can have an efficiency of up to 19%.
Configured with 12V DC5.5x2.1 and 5V USB output interface.
Designed to charge 12V batteries and 5V gadgets.
High output of 2100mAh, can be fully charged in 4 hours.
Decays slower and lasts longer.
The epoxy surface is laminated for long-term use, even in tough settings.
Waterproof to IP65 standards, making it safe for use outside.
Two latches are fitted to the backpack through four holes.
For indoor use, attach four free suction cups to windows.
Dual Output Solar Charging Pad for 12V/5V Camping Fan, Light, and Generator System
