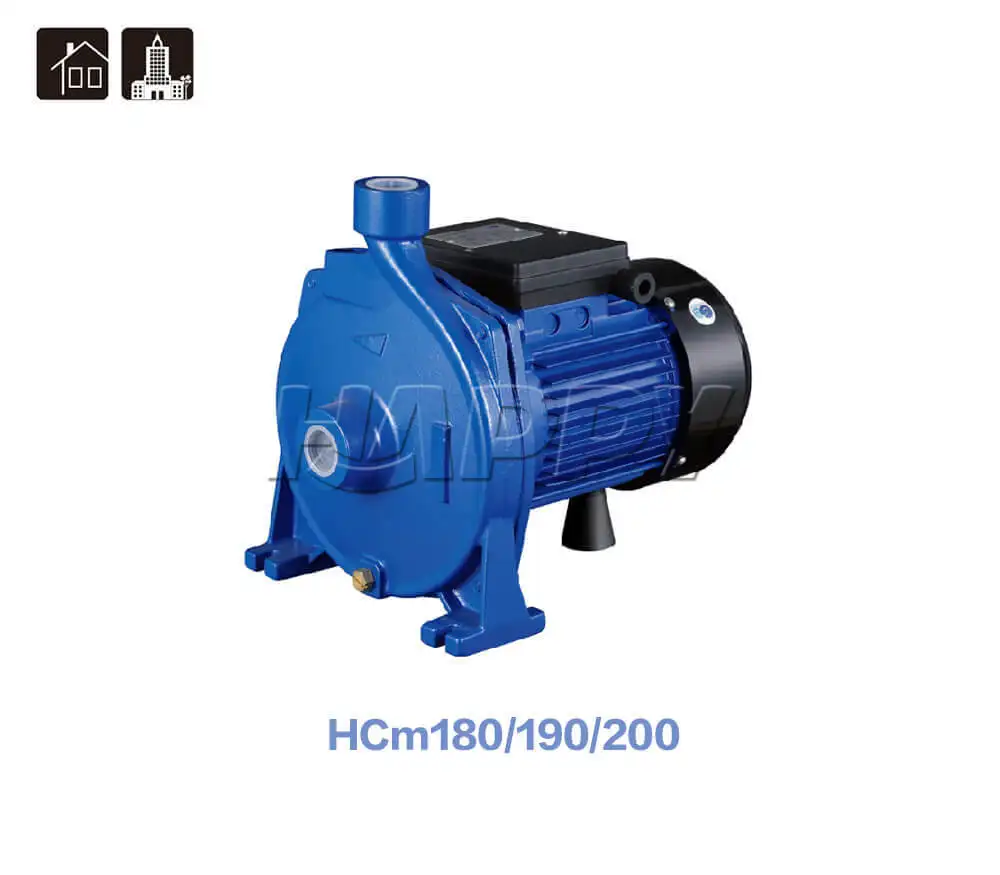

Centrifugal Pumps of HCm

(0 reviews)

Get Price

(112) Views

(0) Contacts

Contact Company

Zhejiang Happy Pump Industry Co., Ltd

Zhejiang, China

(320) Views

(0) Contacts

Motor

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

Operating conditions

Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 8m

                                                            Pump body
                                                            Cast iron

                                                            Pump support
                                                            Cast iron

                                                            Motor housing
                                                            Aluminum

                                                            Impeller
                                                            Brass

                                                            Motor shaft
                                                            Carbon steel, AISI304 SS if request

                                                            Mechanical seal
                                                            Ceramic/Graphite (0.5HP), SIC/Graphite

Applications of Centrifugal Pumps of HCm

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
