Small Domestic RO Reverse Osmosis System

(0 reviews)

Get Price

(167) Views

(0) Contacts

Contact Company

Nanjing Junxin Environmental Technology Co., Ltd

Jiangsu, China

(945) Views

(3) Contacts

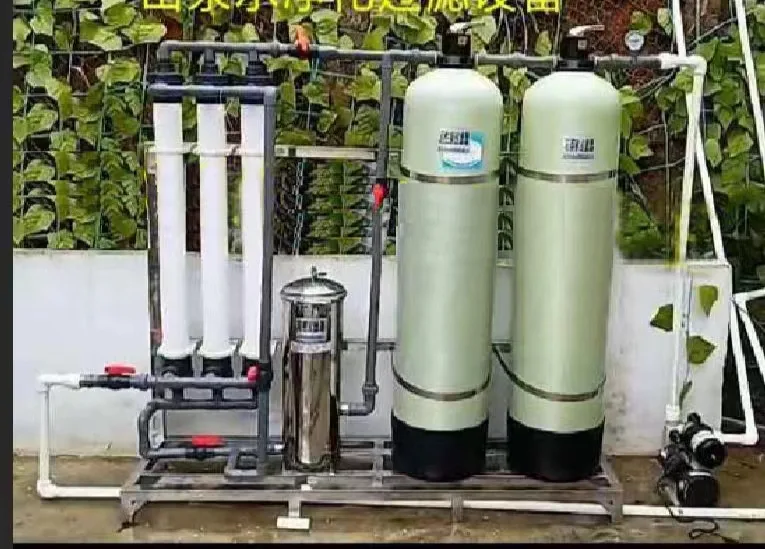

Membrane separation is used in the water treatment process of reverse osmosis pure water equipment. With reverse osmosis (RO), salt-containing feedwater is physically desalinated and purified without going through a phase change at room temperature. Currently, ultra-thin composite membrane elements can desalinate water at a rate of more than 98% while simultaneously removing colloids, organic debris, bacteria, viruses, and other contaminants. JX offers a variety of sizes, including 250LPH, 500LPH, 1000LPH, 1500LPH, 2000LPH, 2500LPH, and 3000LPH.
A quartz-sand filter.
making use of multiple-layer filter material. The primary goal is to remove silt, rust, colloidal particles, suspended solids, and other contaminants in the raw water with a particle size of greater than 20 microns.
Filter with activated carbon
High-efficiency adsorption is a function of nutshell-activated carbon, which also significantly raises the level of water purification and has exceptional odor, organic matter, chroma, colloid, iron, and residual chlorine removal performance.
Device for softening/dosing:
To stop silicate, calcium, and magnesium ions in the water from scaling and obstructing the reverse osmosis membrane, utilize resin adsorption or add a scale inhibitor.

Precision filter

To further filter pollutants and colloids larger than 5 microns in water and avoid fouling the reverse osmosis membrane, a melt-blown 5-micron polypropylene filter element is utilized.

Reverse osmosis (RO)
The fundamental elements of reverse osmosis machinery. In order to achieve a standard of pure water, bacteria, viruses, heavy metal ions, etc. are removed from the water using membrane separation technology. The system has a desalination rate of above 98%.
Details of Reverse Osmosis Systems
The product can be customized.
Simply provide us with the details of your raw water and water yield, and we will design a skilled reverse osmosis system for you. 250, 500, 1000liter, 1500liter, 2000liter,2500liter, and 3000liter.

                                                            Brand
                                                            JX

                                                            Code
                                                            JXSRO500L-1

                                                            Model J
                                                            XSRO500L

Characteristics of Reverse Osmosis Systems

Use a renowned reverse osmosis membrane that has a high rate of desalination, a long lifespan, and a cheap cost of operation.
To achieve unattended operation, a preprocessing system that runs automatically is used.
Use a trustworthy, steady, high-efficiency booster pump from a well-known manufacturer.
To ensure the safety of the water supply, real-time monitoring of water quality changes must be done online.
Electronic control software that is completely automatic, with optional touch screen operation.
Customized design that takes into account the water quality in the area to fully satisfy needs.
