Industrial Antimony PH Sensor

(0 reviews)

Get Price

(111) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(1362) Views

(11) Contacts

Basic Principle of pH Electrode
In PH measurement, the used pH electrode is also known as the primary battery. The primary battery is a system, whose role is to transfer chemical energy into electrical energy. The voltage of the battery is called the electromotive force (EMF). This electromotive force (EMF) is composed of two half-batteries. One half-battery is called the measuring electrode, and its potential is related to the specific ion activity; the other half-battery is the reference battery, often called the reference electrode, which is generally interlinked with the measurement solution, and connected to the measuring instrument.
Technical Indexes
The antimony is relatively sturdy and corrosion-resistant, which meets the requirements for solid electrodes, corrosion resistance, and the measurement of the water body containing hydrofluoric acids, such as wastewater treatment in semiconductors and iron and steel industries.
The antimony-sensitive film is used for the industries corrosive to the glass.
But there are also limitations.
If the measured ingredients are replaced by antimony or react with antimony to produce complex ions, they should not be used.
Note: Keep the antimony electrode surface cleaning; if necessary, use fine Sandpaper to polish the surface of the antimony.
Why monitor the pH of water?
pH measurement is a key step in many water testing and purification processes:
● A change in the pH level of water can alter the behavior of chemicals in the water.
● pH affects product quality and consumer safety. Changes in pH can alter the flavor, color, shelf-life, product stability, and acidity.
● Inadequate pH of tap water can cause corrosion in the distribution system and can allow harmful heavy metals to leach out.
● Managing industrial water pH environments helps prevent corrosion and damage to equipment.
● In natural environments, pH can affect plants and animals.

                                                            Model No.

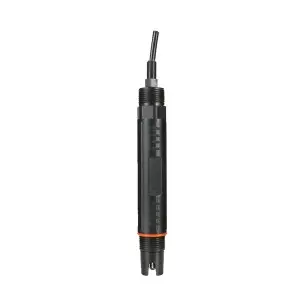

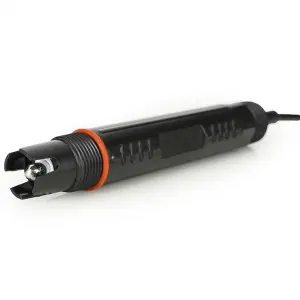

                                                            PH8011 pH Sensor

                                                            Model No
                                                            PH8011

                                                            Measure parameter
                                                            pH, temperature

                                                            Temperature range
                                                            0-60℃

                                                            Features
                                                            High temperature and corrosion resistance;                      Fast response and good thermal stability;                      It has good reproducibility and is not easy to hydrolyze;                      Not easy to block, easy to maintain

                                                            Connection
                                                            Low-noise cable goes out directly.

                                                            Measuring range
                                                            7-9PH

                                                            Temperature range
                                                            0-60℃

                                                            Compressive strength
                                                            0.6MPa

                                                            Material
                                                            PPS/PC

                                                            Installation Size
                                                            Upper and Lower 3/4NPT Pipe Thread

Laboratory
Domestic sewage
Industrial wastewater
Surface water

1. It adopts the world-class solid dielectric and a large area of PTFE liquid for junction, difficult to block and easy to maintain.
2. Long-distance reference diffusion channel greatly extends the service life of electrodes in harsh environments.
3. There is no need for additional dielectric and there is a little amount of maintenance.
4. High accuracy, fast response, and good repeatability.
