The basic principle of PH electrode
For measurement of the pH electrode is also known as the Primary battery. A primary battery is a system; its role is to make chemical energy into electricity. The battery voltage is called the electromotive force (EMF). The electromotive force (EMF) consists of two half-cells. One-and-a-half cells are called measuring batteries, and their potential is associated with specific ion activity; another one-and-a-half in the reference battery, often referred to as the reference electrode, is general and the measuring solution is interlinked and connected to the measuring instrument. PH electrode made by plane glass ball bubble, high pollution resistance and resistant to impact.
What is pH?
pH is a measure of the hydrogen ion activity in a solution. Pure water that contains an equal balance of positive hydrogen ions (H +)
and negative hydroxide ions (OH -) has a neutral pH.
● Solutions with a higher concentration of hydrogen ions (H +) than pure water are acidic and have a pH of less than 7.
● Solutions with a higher concentration of hydroxide ions (OH -) than water is basic (alkaline) and have a pH greater than 7.

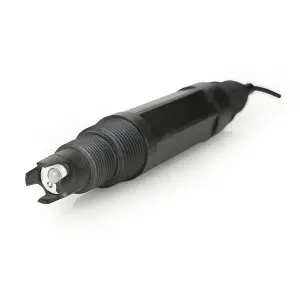

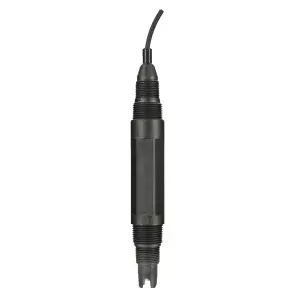

                                                            Model No
                                                            CPH-809X

                                                            Measure parameter
                                                            pH, temperature

                                                            Temperature range
                                                            0-95℃

                                                            Features
                                                            High temperature and corrosion resistance;                      Fast response and good thermal stability;                      It has good reproducibility and is not easy to hydrolyze;                      Not easy to block, easy to maintain;

                                                            Measuring range
                                                            0~14 PH

                                                            Temperature range
                                                            0~95℃

                                                            Withstand voltage
                                                            0.6 Mpa

                                                            Material
                                                            PPS

                                                            Slope
                                                            <96%

                                                            Zero potential
                                                            7PH ±0.3

                                                            Installation dimension
                                                            The upper and lower 3/4NPT pipe thread

                                                            Standard length
                                                            5m

                                                            Temperature compensation
                                                            2.252K、PT1000 etc

                                                            Connection mode
                                                            Low noise cable leads directly

Laboratory, domestic sewage, industrial wastewater, surface water, etc

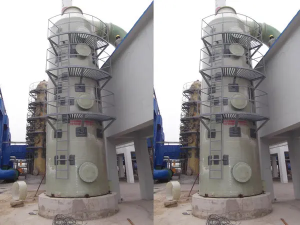

Desulfurization of pH measurement of pH electrode is used for flue gas desulfurization, the electrode adopts the gel electrode, free maintenance, electrode under high temperature or high pH can still maintain high precision.
Used in all kinds of industrial wastewater treatment, environmental protection water treatment, and pH measurement of flue gas desulfurization
