ULP-4040 low pressure RO membrane

(0 reviews)

Get Price

(137) Views

(0) Contacts

1 - 49 pieces 50 - 99 pieces >= 100 pieces
$69.00 $59.00 $49.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(2024) Views

(52) Contacts

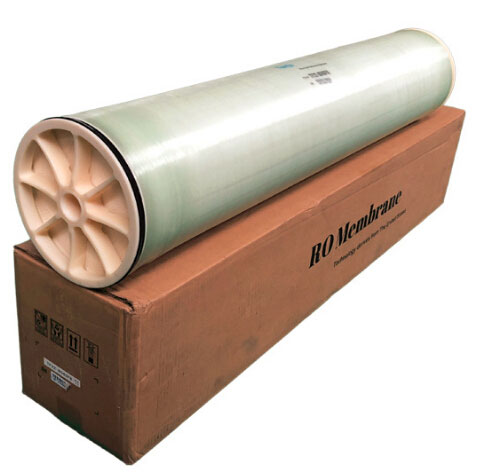

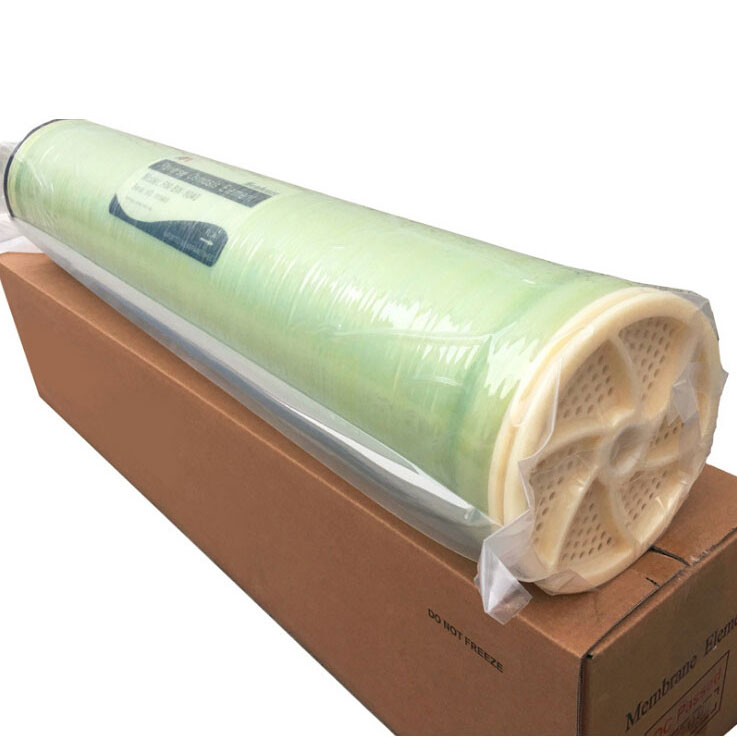

ULP-4040 membrane elements are spiral wound, composite polyamide membrane elements for Brackish Water treatment. These membranes are characterized by Low operating feed pressure, normally 150psi(1.05MPa), and result in a higher salt rejection rate(especially good for removing TOC, SiO2, etc.), above 99.1%.

Operation Limits & conditions	Max. Feed Water Flow	16gpm (3.6m3/h)
	Max. Working Pressure	600psi (4.14MPa)
	Max. Feed Water Temperature	45℃
	Max. Feed Water SDI15	<5
	pH Range of Feed Water During Continuous Operation	3~10
	pH Range of Feed Water During Chemical Cleaning	2~12
	Residual Chlorine Concentration of Feed Water	<0.1 ppm
	Max. Pressure Drop of Single Element	10psi (0.07MPa)
	Max.Turbidity NTU	1.0

Model	Active Membrane	Spacer Net Thickness
ULP-4040	85ft2 (7.9m2)	29mil (0.73mm)
ULP31-4040	89ft2 (8.3m2)	29mil (0.73mm)

                                                            Testing Pressure
                                                            150psi (1.05MPa)

                                                            Recovery Rate of Single Element
                                                            15%

                                                            Temperature of Testing Solution
                                                            25℃

                                                            pH Value of Testing Solution
                                                            7.5

                                                            Concentration of Testing Solution (NaCl)
                                                            1,500ppm

These membranes are designed for industrial water treatment applications(NaCl≤2,000ppm, Salt content≤2000us/cm), such as the treatment of surface water, underground water, tap water, and municipal water for Foodstuff processing, Pharmaceutical production.
