Vibrating Aerator-DD125

(0 reviews)

Get Price

(169) Views

(0) Contacts

Micropore Nano Water Treatment EPDM Membrane Coarse Bubble Air Disc Diffuser 12 Inches Disc Aeration System Series

1 - 120 pieces
$7.70
121 - 2000 pieces
$6.00
>= 2001 pieces
$4.10

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(1338) Views

(6) Contacts

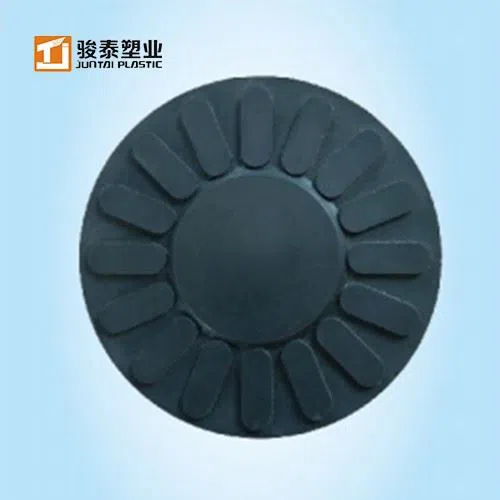

Vibrating aerator
The vibrating aerator consists of a high-pressure injection molded corrosion-resistant, high-strength nylon engineering plastic chassis and a special synthetic rubber diaphragm with a long service life. The aerator of anti-fouling can lower part of the component with the function of a discharge outlet, can carry out automatic cleaning between the diaphragm and chassis, chassis of the baffle plate can guarantee the air evenly distributed around, diaphragm design into a real role in check valve, to ensure that the airflow stops, reduces the crumbs and liquid into the airline to very low levels. The lugs on the chassis are filled with specially shaped grooves in the diaphragm to reduce the loss of the diaphragm by high-pressure air, and all the cross-lines o1 the chassis have suitable radio to eliminate fatigue and external stress fractures under all service loads.

Item number	DD125	Item number	DD125
Gas Volume(m3/h)	1-4	Theoretical dynamic efficiency	2.5-3.8
Bubble diameter（mm）	2.5-3.5	Service Area	0.2-0.5
Oxygenation(kgO2/h)	0.12-0.35	Air resistance loss	≤3500
Oxygen utilization rate	13.5%-17.1%	Service life	≥5

1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration basin in sewage disposal plant;
2. Aeration for denitrification/dephosphorization aerobic processes;
3. Aeration for excreta and animal wastewater treatment plant; 4. Aeration of deep aeration basin;
5. Aeration for high concentration wastewater aeration basin, and aeration for regulating pond of wastewater treatment plant;
6. Aeration of the fishpond and other applications.

Disc Diffuser Aeration Features
1. Simple structure, easy to install
2. Strong sealing, no air leakage
3. Maintenance-free design, long service life4. Corrosion-resistant, anti-clogging
5. High oxygen transfer efficiency
Product Features
1. No blockage: the sharp hole structure at the bottom can prevent debris from settling in the aerator. The rate controlled through the vent produces a reliable flushing effect. Different materials with sharp holes can flex the pores to "sweep" debris from the surface.
2. Will not blow out: By passing the stress to the outer lip, the fingers are locked against blowing out. This action forces the cap to stick to the aerator.The notch that strengthens the cap also strengthens the locking lip to reduce movement and prevent the cap from leaving the plate.
3. To reduce the impact of brittleness to a small degree: The unique cap and chassis structure enable the cap to lock onto the chassis when brittle. Due to the use of low-hardness cap material, caps are still more flexible than other aerators until they hit the water.
4. Do not need maintenance: because the vibration aerator will not be blocked, will not blow out, and is not easy to brittle fracture, so in fact, no maintenance. This performance is not available in other aerators.
