Automatic Stirring Submersible Sewage Suction Pump Head 40m

(0 reviews)

(126) Views

(0) Contacts

This series automatic stirring submersible sewage pump is developed by absorbing advanced technology and using an excellent hydraulic model.

Contact Company

Sinooutput Group Ltd

Shanghai, China

(977) Views

(27) Contacts

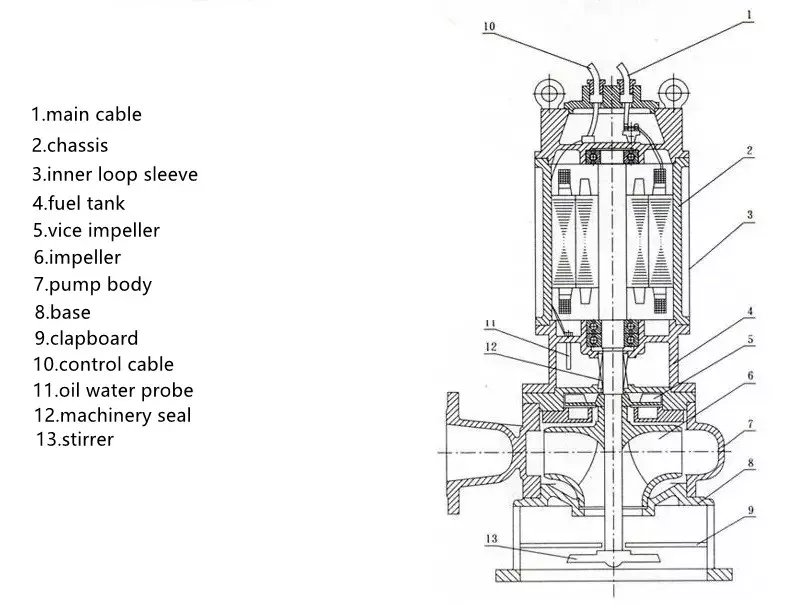

This series automatic stirring submersible sewage pump is developed by absorbing advanced technology and using an excellent hydraulic model. The automatic stirring device is used, which rotates with the motor shaft to generate a strong stirring force, stirs the sediment in the pool into a suspended substance, and then sucks it into the impeller and discharges it to achieve the effect of dredging.
Improve the flow capacity and discharge capacity of sewage. The mechanical seal is a double-end mechanical seal, which is in the oil chamber for a long time to ensure the safe and reliable operation of the pump. The partition divides the base into two parts, and stirring and water intake do not affect each other. It mainly relies on the 3 flushing sprays added at the bottom of the pump body to stir the liquid by the stirring pump itself to stir the sediment near the sewage pump automatically to achieve the stirring function.
You can also choose a fully-protected automatic stirring submersible sewage pump. The motor is equipped with a thermal protector. When the motor is overloaded and heated, the protector will act in time to protect the pump and the motor. There is a water leakage detection probe in the wire cavity.
When water leakage occurs, the probe sends a signal, and the control system protects the pump. An oil-water probe is installed in the oil chamber. When the mechanical seal is damaged, water enters the oil chamber, the probe sends a signal, and the control system protects the pump. Suitable for chemical, petroleum, pharmaceutical, mining, papermaking, power plants and urban sewage treatment, municipal engineering, public facility sewage, and other conveyor belt particles, sediments, and sewage.

                                                            Item No.
                                                            00716

                                                            Flow (m³/h)
                                                            7-900

                                                            Pressure (mpa)
                                                            15~300

                                                            Head (m)
                                                            6~40

                                                            PH value range
                                                            4~9

                                                            Water outlet diameter(mm)
                                                            40-300

                                                            Medium temperature (°C)
                                                            ＜60

                                                            Matching power range (kw)
                                                            1.1~90

                                                            Stirring range (mm)
                                                            1200-3000

Application scope and conditions of use
1. It is used for the discharge of seriously polluted wastewater from factories and businesses.
2. It is used in the drainage system of urban sewage treatment plants, hospitals, and hotels.
3. Sewage drainage station for residential areas.
4. It is used for the water supply device of the drainage station of the civil air defense system and the waterworks.
5. for municipal engineering, and construction sites.
6. It is used for auxiliary machines in exploration, mining, and power plants.
7. It is used for rural biogas digesters, farmland irrigation, and dredging of river ponds.
8. Conveyor belt granular sewage and dirt can also be used for clean water and weak corrosive media.
