Working principle

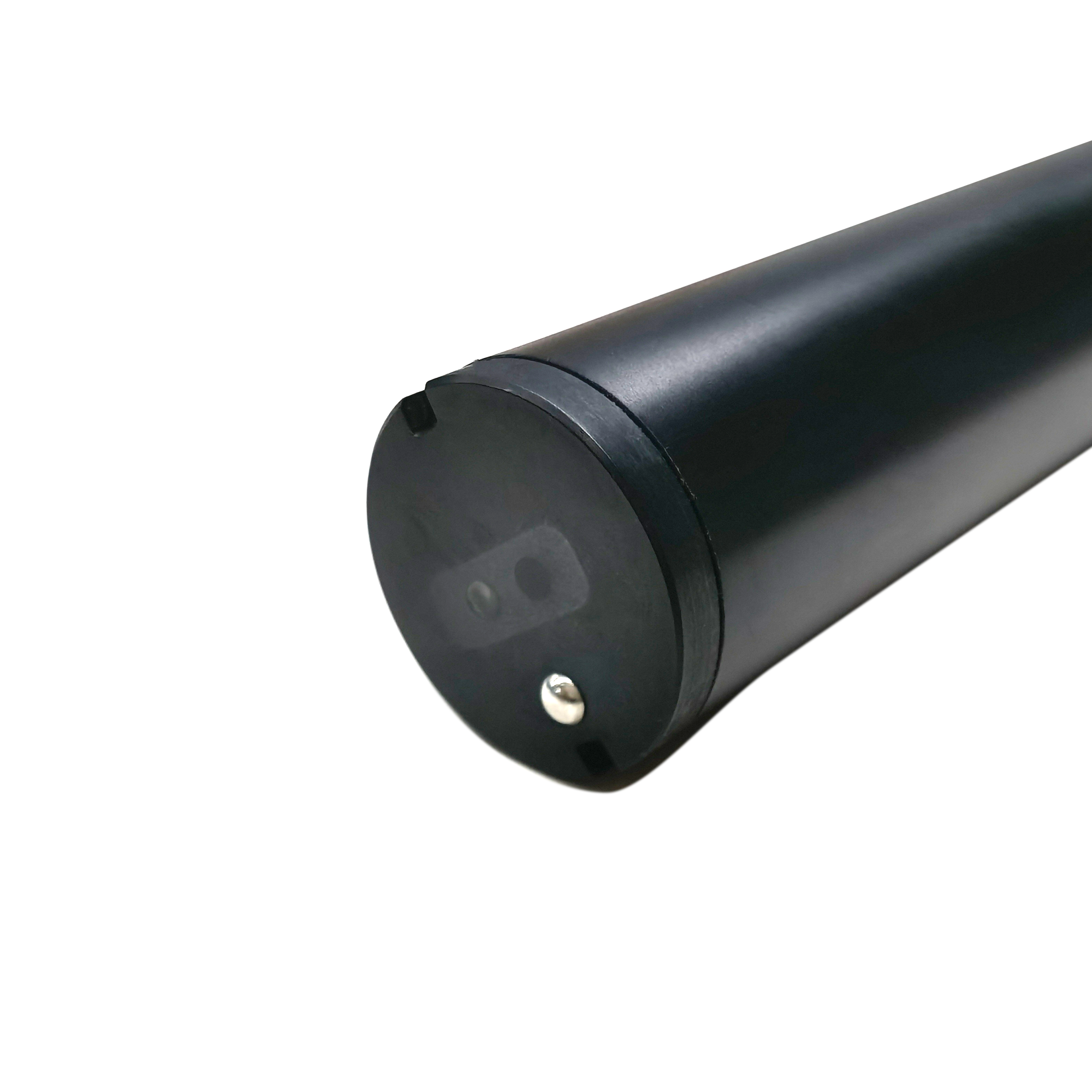

ZS-206A integrated online turbidity sensor is designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light is incident on a water sample, the light is scattered by the turbidity substance in the water sample, and the intensity of the scattered light in the direction perpendicular to the incident light is measured and compared with the internal calibration value to calculate the turbidity in the water sample. Degree, linearized to output the final value.

90° angle scattered light principle, built-in temperature sensor
Support RS-485, Modbus/RTU protocol
Optical fiber structure, strong resistance to external light interference
Infrared LED light source with high stability
IP68 protection, water depth within 20 meters
Convenient, fast, stable, and easy to maintain

                                                            Model
                                                            ZS-206A

                                                            levels of protection
                                                            IP68

                                                            Measuring principle
                                                            Scattering light method

                                                            Measuring range/Resolution
                                                            0～20.00NTU  0.01NTU/0.1℃  0～100.0NTU  0.1NTU/0.1℃  0～1000.0NTU  0.1NTU/0.1℃

                                                            source
                                                            12～24VDC ±10%

                                                            Accuracy
                                                            ±5% or ±3NTU(0～1000NTU)  ±3% or ±2NTU(0～100NTU)  ±3% or±1.5NTU(0～20NTU)  ±0.3℃

                                                            power dissipation
                                                            ＜0.3W@12V

                                                            Calibration mode
                                                            Two-point calibration

                                                            temperature compensation
                                                            Automatic temperature compensation(Pt1000)

                                                            Cable length
                                                            5 meters, other lengths customizable

                                                            Output mode
                                                            RS-485( Modbus /RTU)

                                                            Installation mode

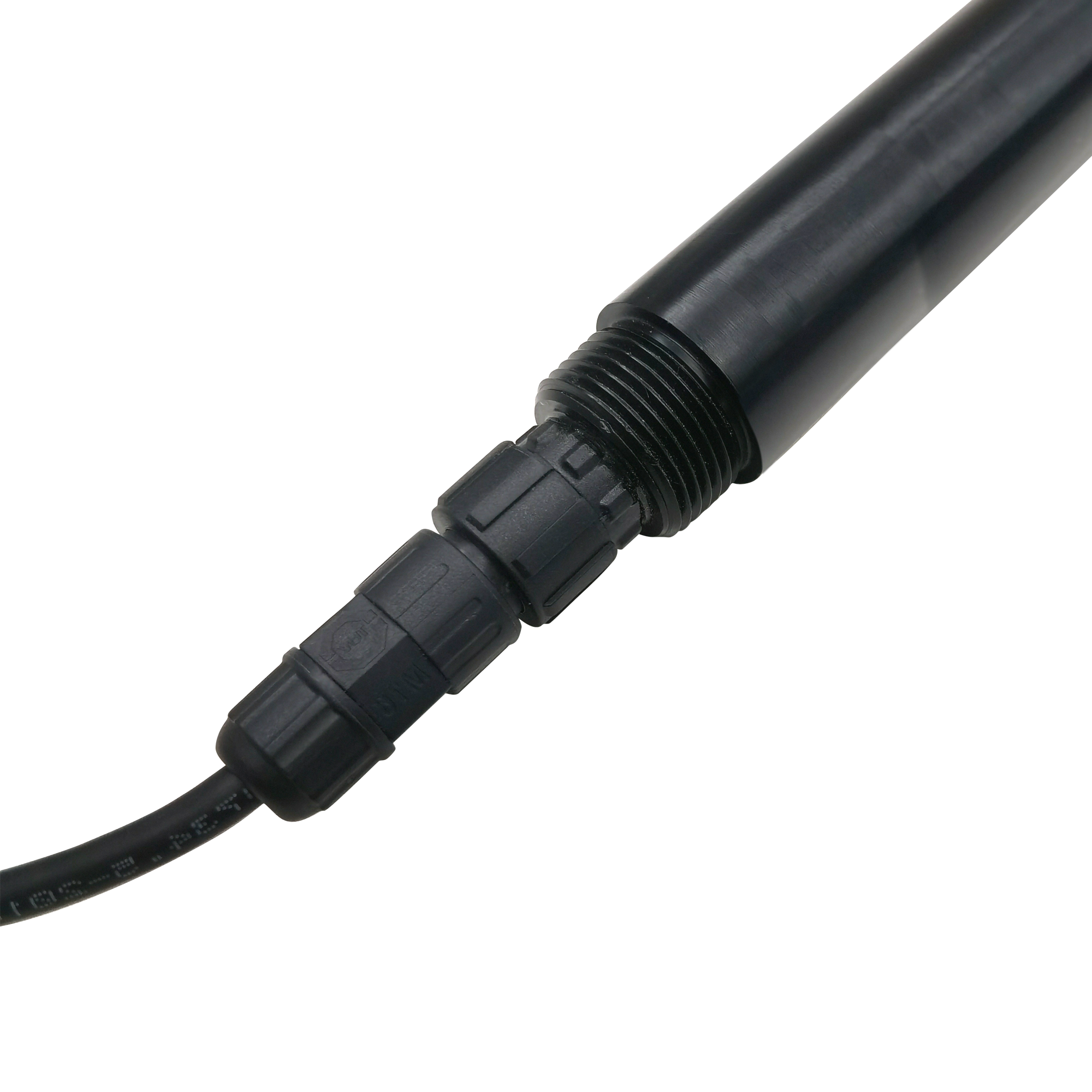

                                                            Immersive installation, 3/4NPT thread

                                                            Working conditions
                                                            0～50℃，<0.2MPa

                                                            Wetted material
                                                            POM、ABS

                                                            Storage temperature
                                                            -5～65℃
