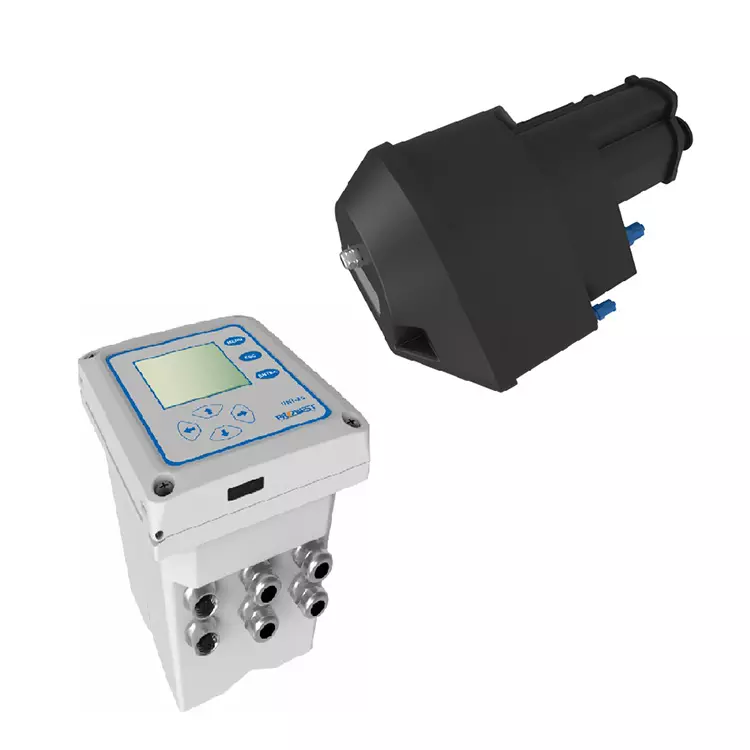

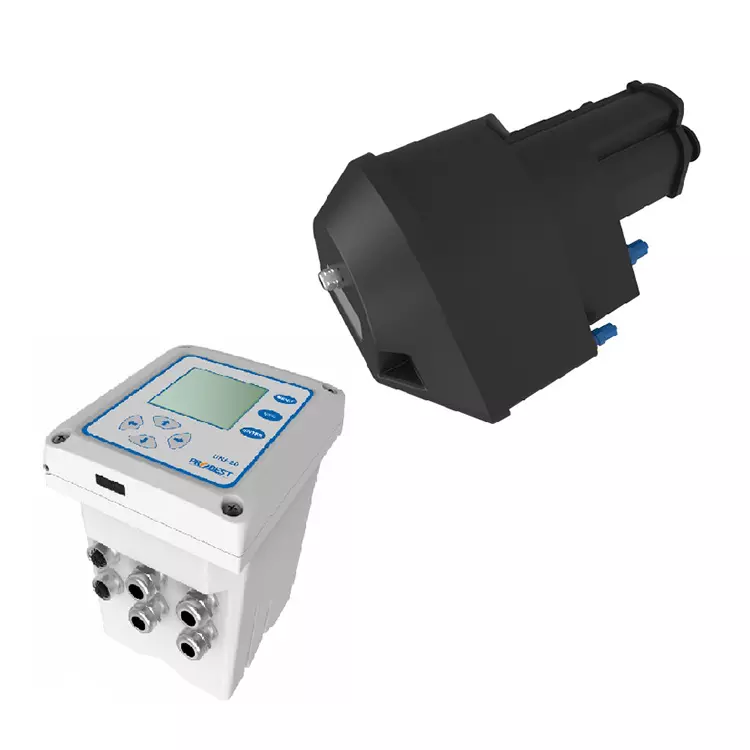

Low Range Turbidity Measurement Meter Turbidity Sensor

(0 reviews)

Get Price

(90) Views

(0) Contacts

$566.00 - $1,999.00 |1 piece/pieces

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(893) Views

(3) Contacts

Measurement Principle

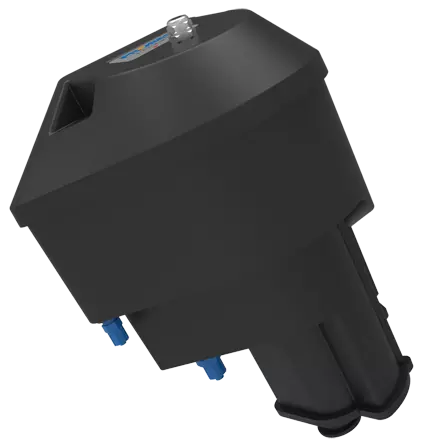

The incident light of the PLTU‐700 Low‐Range Sensor is produced by the tungsten light whose color temperature’s absolute temperature is between 2200 degrees to 3000 degrees. Guiding the parallel light assembled by the tungsten light down into the water sample of the sensor, the light is scattered by suspended particles in water samples, and the scattered light that is with a ninety-degree angle to the angle of incidence is received by the silicon photocell receiver in the water sample, measuring the turbidity by calculating the relationship with 90‐degree scattered light and the incident beam.

                                                            Measurement range
                                                            0.001-100 NTU

                                                            Measurement   Accuracy
                                                            ±2% of the reading or   ±0.015NTU when the range is  0.001-40NTU,whichever   is greater;±5% of the reading  when the range is   40-100NTU

                                                            Water flow
                                                            300ml/min≤X≤700ml/min

                                                            Calibration
                                                            Standard solution   calibration,water ample calibration,zero  calibration

                                                            Pipe Fitting
                                                            Inlet：1/4NPT；Outlet：1/2NPT

                                                            Main   material
                                                            Body：ABS   + SUS316L； Seal: Butyl Cyanide Rubber；Cable：PUR

                                                            Power supply
                                                            AC：85-500VAC (50/60HZ)  DC：9~36VDC

                                                            Output
                                                            3-way 4-20mA

                                                            Relay
                                                            Three-way relays, programmed response parameter  and response value.

                                                            Cable   length
                                                            Standard: 3m,not recommend to   extend.

                                                            Communication protocol
                                                            MODBUS  RS485

                                                            Storage temperature
                                                            -15-60℃

                                                            Measuring   temperature
                                                            0-45℃（Non-freezing）

                                                            Dimension
                                                            Sensor：310 *210*410mm(L*W*H)  Transmitter：145*125*162mm(L*W*H)

                                                            Weight
                                                            Sensor：2.1KG；Transmitter：1.35KG

                                                            Protective rate
                                                            Sensor：IP65(Indoor)；Transmitter：IP65/   NEMA4X

                                                            Model
                                                            PFLTU-700

                                                            Brand
                                                            PROBEST

                                                            Code
                                                            90268090

Turbidity online monitoring of filtration of the water plant, product Water, and direct drinking water system.
Turbidity online monitoring of recirculating cooling water and filter water in all kinds of industrial production and water reuse system.

A scattering turbidity meter with continuous readings, designed for low‐range turbidity monitoring.
Stable data and good repeatability.
Simple clean and maintain.
Plug-and-play sensors, quick and easy installation.
