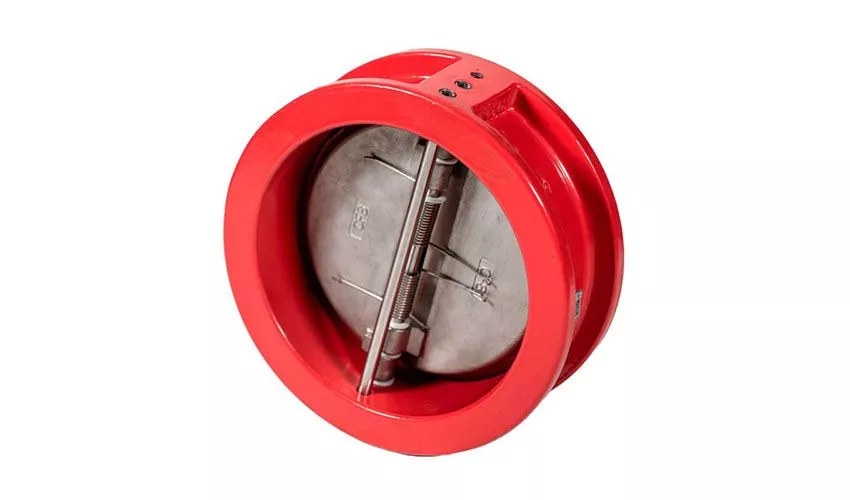

Dn80 Wafer Check Valve

(0 reviews)

Get Price

(145) Views

(0) Contacts

Contact Company

Hebei Zhuningqian Valve manufacturing Co.,Ltd.

Hebei, China

(1321) Views

(51) Contacts

                                                            Турe
                                                            DH77X-10              DI177X-16

                                                            Nominal pressure (MPa)
                                                            10                     16

                                                            Seal ring Material
                                                            NBR

                                                            Valve body Material
                                                            Grey iron, Ductile iron

                                                            Suitable medium
                                                            Water

                                                            Strength (Water) (MPa)
                                                            1.5                     2.4

                                                            Spring Material
                                                            Stainless steel

                                                            Disc Material
                                                            REHI Ductile iron

                                                            Suitable temperature (c)
                                                            ≤ 80

                                                            Testing pressure
                                                            1.1                                1.8

                                                            Shaft Material
                                                            Carbon steel
