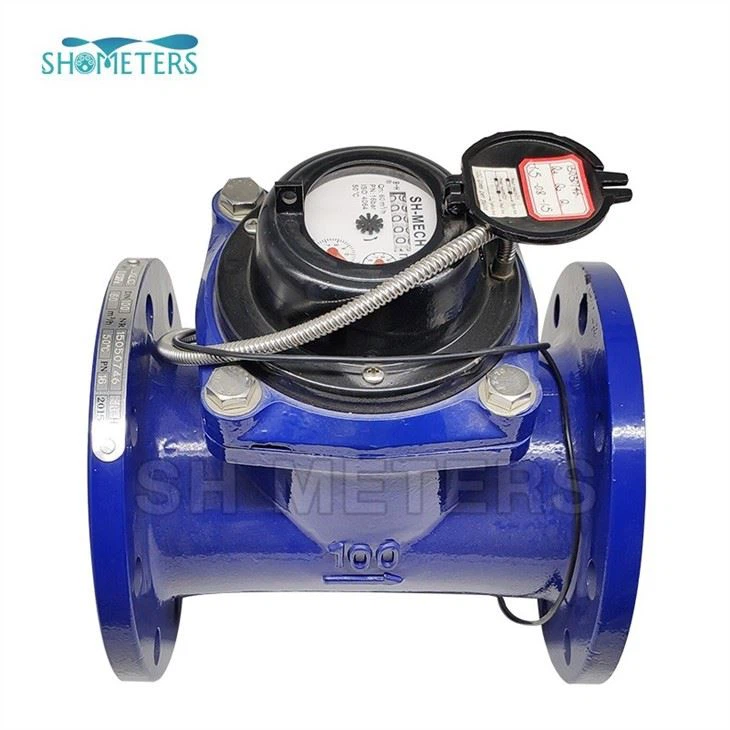

Flange Pulse Output Industrial Woltman Water Meter

(0 reviews)

47.5 USD

(113) Views

(0) Contacts

$47.50 - $416.90/1 piece/piece

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(1047) Views

(4) Contacts

Working Condition
Water temperature: 0.1℃~50℃ (0.1℃~90℃ for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum Permissible Errors

In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

Dimensions

Type	Size	Length	Height	Connecting Flange
Type	mm			D1 Outside Diameter	D2 Bolt Circle Diameter	Connecting Bolts(n-M)
LXXG-50	50	200	253	165	125	4-M16
LXXG-65	65	200	268	185	145	4-M16
LXXG-80	80	225	284	200	160	8-M16
LXXG-100	100	250	295	220	180	8-M16
LXXG-125	125	250	310	250	210	8-M16
LXXG-150	150	300	339	285	240	8-M20
LXXG-200	200	350	382	340	295	8-M20(1.0Mpa)
LXXG-200	200	350	382	340	295	12-M20(1.6Mpa)
LXXG-250	250	450	438	395	350	12-M20(1.0Mpa)
LXXG-250	250	450	438	405	355	12-M24(1.6Mpa)
LXXG-300	300	500	488	445	400	12-M20(1.0Mpa)
LXXG-300	300	500	488	460	410	12-M24(1.6Mpa)

                                                            Working pressure
                                                            PN16/25

                                                            Accuracy
                                                            R=25/20/50

                                                            Size
                                                            DN50-DN300

Measuring the volume of cold (hot) water passing through the pipeline.
water meter is used for irrigation, municipality, etc

Removable element structure, easy installation, and maintenance
Dry-dial, Magnetic drive
Large flow capacity, small pressure loss
Resist water hummer and pollution
Vacuum sealed register ensures the dial keep free from condensation and keeps the reading clear in a long-term service
Selected high-quality materials for steady and reliable characteristic
Technical data conform to international standards ISO 4064/ISO9100
With high accuracy
Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter

Optional Features

Plastic register, copper register, and full glass register
Cold / Hot water
Reed switch option
Flange standards can be chosen
360-degree rotation can be chosen
Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose
Provide pulse output
