The reverse osmosis water purification method applies pressure to the water flowing into the membrane filter, and it can filter out not only heavy metals but also bacteria and organic chemicals. While it is a water purification method that purifies with suitable water, it also has the disadvantage of filtering out various minerals necessary for our body.
LOHAS water purifier equipment and system
The “LOHAS water purifier” and “system” researched and developed by our company are invented as a product that simultaneously combines a filter structure that generates “alkaline reduced water” by reinforcing mineral restoration and reducing power in pure (ultrapure water) water that has passed through an RO membrane filter. It is a product that has been selected for a government R&D project as well as patent registration.

RO SYSTEM SPECIFICATION

MODEL NO (RO PERMEATE WATER PURIFIER)
Item	RO-03	RO-05	RO-1	RO - 3
TYPE	CASE BUILT-IN TYPE	CASE BUILT-IN TYPE	EXTERNAL EXPOSURE TYPE (WITHOUT CASE)	EXTERNAL EXPOSURE TYPE (WITHOUT CASE)
APPLICATIONS	SUITABLE FOR PURIFICATION OF SURFACE WATER	SUITABLE FOR PURIFICATION OF SURFACE WATER	SUITABLE FOR PURIFICATION OF SURFACE WATER	SUITABLE FOR PURIFICATION OF SURFACE WATER
INLET CONDITION	FLOW RATE: 450LPH PRESSURE: 25 ∼ 30 PSI	FLOW RATE: 740LPH PRESSURE: 25 ∼ 30 PSI	FLOW RATE: 1,500LPH PRESSURE: 25 ∼ 30 PSI	FLOW RATE: 4.000LPH PRESSURE: 25 ∼ 30 PSI
DIMENSIONS (mm)	944 (L) x 500 (W) x 984 (H)	944 (L) x 700 (W) x 984 (H)	1,120 (L) x 1,000 (W) x 1,600 (H)	3,500 (L) x 1,000 (W) x 1,950 (H)
PRODUCT CAPACITY	Max. 350LPH	Max. 550LPH	Max. 1,100LPH	Max. 3.200LPH
RAW WATER CONDITION	Less 1,000ppm at TDS	Less 1,000ppm at TDS	Less 1,000ppm at TDS	Less 1,000ppm at TDS
INLET / OUTLET SIZE	12φ / 10φ, HOSE	15A / 15A, NIPPLE	20A / 20A, NIPPLE	40A / 32A, NIPPLE
PRE FILTER	SEDIMENT FILTER A/CARBON FILTER	SEDIMENT FILTER A/CARBON FILTER	SEDIMENT FILTER A/CARBON FILTER	SEDIMENT FILTER A/CARBON FILTER
MEMBRANE TYPE	4021 (TFC) - 1EA	4021 (TFC) - 2EA	4040 (TFC) - 4EA	4040 (TFC) - 18EA
POWER SUPPLY	AC 220V / 380V x 1.5KW x 60Hz	AC 220V / 380V x 2KW x 60Hz	AC 220V / 380V x 3KW x 60Hz	AAC 220V / 380V x 4KW x 60Hz
WORKING PRESSURE	75 to 150 PSI	75 to 150 PSI	75 to 150 PSI	75 to 150 PSI
WEIGHT	Approx. 40KG	Approx. 50KG	Approx. 60KG	Approx. 120KG

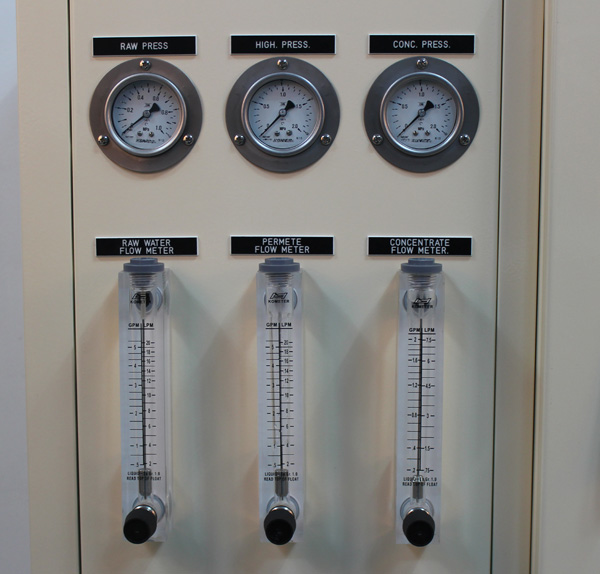

ACC'Y	Flow Meter / Pressure Gauge	Flow Meter / Pressure Gauge	Flow Meter / Pressure Gauge	Flow Meter / Pressure Gauge
** Remark: OPTION - RAW WATER FEED PUMP
