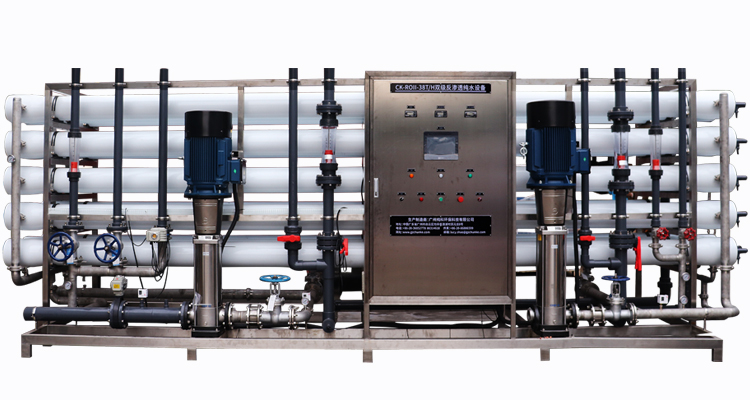

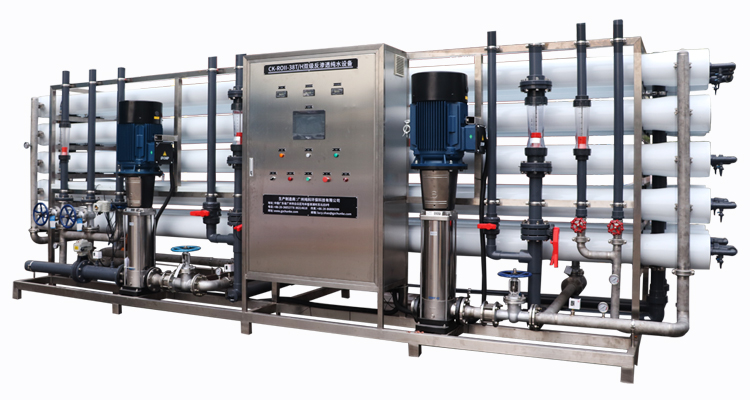

Industrial Brackish Water RO Treatment Systems are used to remove salt and purify water. This system consists of a booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), SS304 cartridge filter housing, chemical dosing systems, high-pressure pump, FRP membrane pressure vessel, 4040 or 8040 membranes, control panel, and touch screen control.

Material and parts brands can be changed as regards raw water quality and customer demand.
From the touch screen panel, you can see all system flow diagrams and automatic or manual control of the system.
Membranes do not allow small particles, viruses, or bacteria to pass as a result your water becomes very clean and safe.
Industrial Brackish Water Desalination Plant Capacity range between 48m3/hour to 7500m3/day. If you need smaller than this capacity please see our commercial Brackish Water RO Plant.

If the water TDS is more than 1000ppm, we call this one brackish water. A different source of science books defines brackish water TDS as different. But if water does not tap water and seawater, and TDS between 100 to 12000 ppm, it can be called as brackish water.

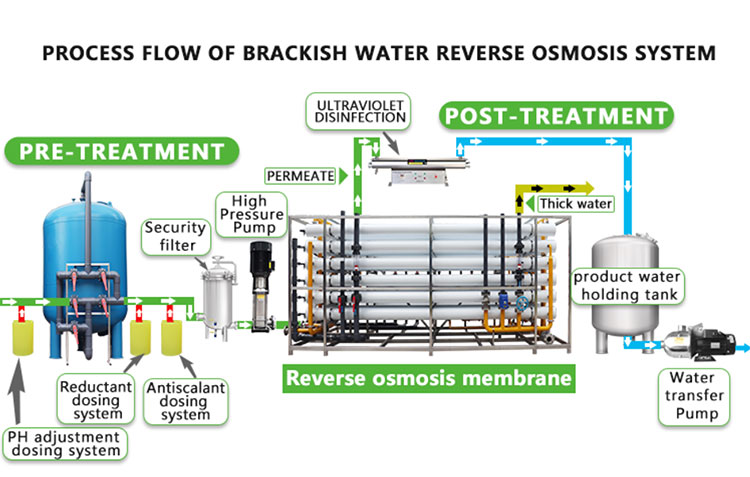

All Brackish Water Treatment Plants are started by a booster pump, which feeds raw water to pretreatment tanks. Depending on capacity pretreatment tank size and numbers can be changed. Because of High TDS (Total Dissolved Solid) we usually use FRP and Carbon Steel Tanks but we can check your raw water source analysis and we can suggest alternative materials. If salt content and TDS are high, because of the corrosion, we are using FRP or Carbon Steel material for pretreatment tanks.

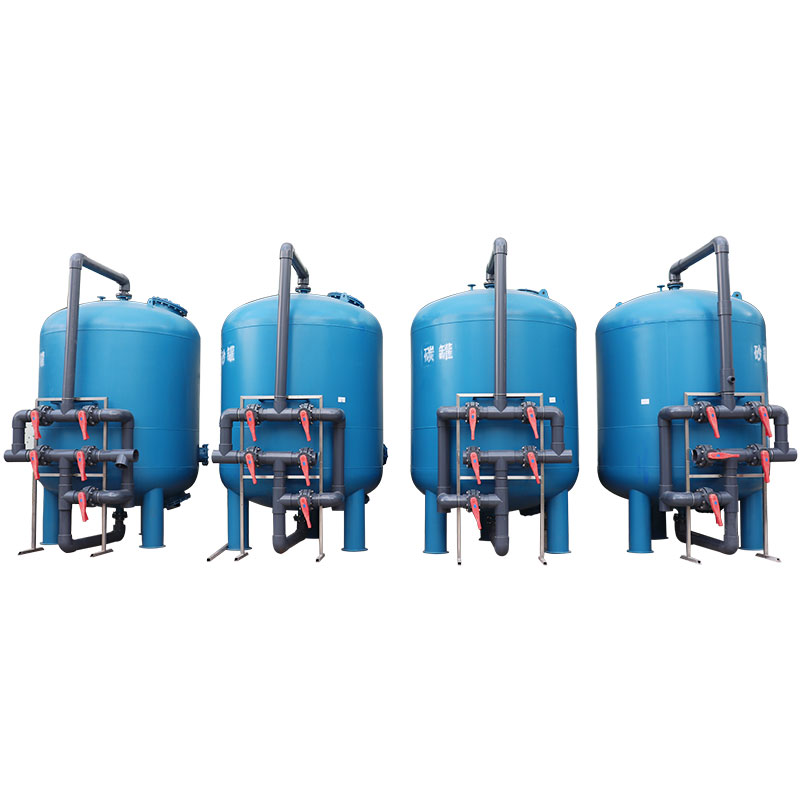

Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank, and Softener Tank which has ion exchange resin inside, they are very important for Brackish Water Desalination Plants.
Brackish Water RO Plant
Pretreatment is used to remove a large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine, sediment, organic contaminants, and odors. In pretreatment, we can control the flow manually or automatically for Brackish Water RO Plant.
After pretreatment water goes to the cartridge filter housing, we call it a security filter, most of the applications we are using stainless steel 304 or 316 material, but if water is very salty like brackish or seawater, we can use carbon steel or FRP or PVC Plastic Cartridge Filter Housing or Bag Filter Housing. There is a 1µm or 5 µm PP filter in the cartridge filter housing Brackish Water RO Plant.

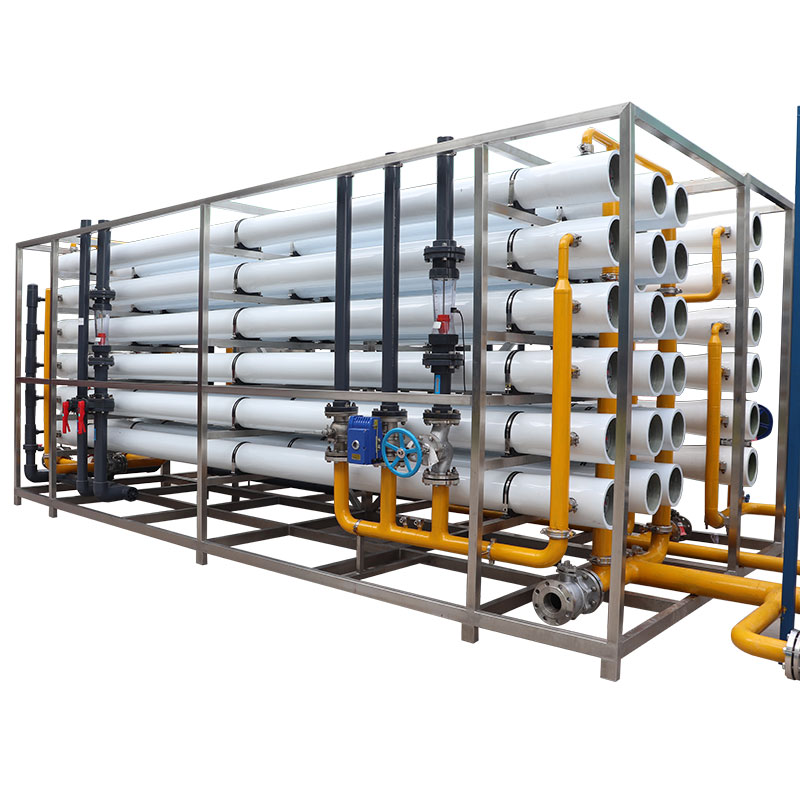

After the cartridge filter housing, water goes to the membrane pressure vessel with High-Pressure Pump, you have a brand option for High-Pressure Pump and it allows you to adjust your budget. The membrane housing shell inside depends on capacity we have 4040 or 8040 Membranes. For most of our Brackish Water Treatment Plant project, we are using DOW Filmtec, Toray, Vontron, Hydranautics, and LG brand ro membranes. Membranes, in industrial Brackish Water Desalination Plants, are the most important part. They block if the particle size is bigger than 0.001µm and the molecular weight is up to 150-250Dalton. It consists of impurities, particles, sugars, proteins, bacteria, dyes, and organic and inorganic solids. Also, Brackish Water Treatment Plant systems can have chemical dosing at pretreatment or post-treatment, like anti-scaling (antiscalant), antifouling, pH adjustment, Sterilization & Disinfection chemicals.
Brackish Water Treatment Plant
In Chunke when we check customer water analysis reports, sometimes because of scaling and fouling problems, we can use CIP (Clean In Place) System, which washes the membrane in membrane housing and makes the membrane life longer.
Electrical Power of industrial Brackish Water RO Plant
For industrial Brackish Water Treatment Plant needs 220-380V/50Hz/60Hz. For bigger capacity, because of the high-pressure pump, it needs 380V 50/60Hz. As regards your Brackish Water RO Plant machine design, we will check your electrical supply and decide to fix the power for you.

Before Buying Industrial Brackish Water Desalination Plant, you should know:
1. Pure Water Production Capacity (L/day, L/Hour, GPD).
2. Feed Water TDS and Raw Water Analysis Report (prevent fouling and scaling problems)
3. Iron and Manganese must be removed before raw water enters the membrane of the Brackish Water Desalination Plant
4. TSS (Total Suspended Solid) must remove before the industrial Brackish Water Treatment Plant‘s membrane.
5. SDI (Silt Density Index) must be less than 3
6. Must be sure your water source does not have oil and grease
7. Chlorine must be removed before industrial Brackish Water RO Plant
8. Available electrical power voltage and phase
9. Layout of place for industrial Brackish Water RO Plant

Membrane Sizes and Quantity for BWRO Water Treatment Plant

Model Number	Permeate Flow Rate	Membranes
Model Number	Liter/Hour	Size	Quantity
CK-RO-2000L	2000	4040	8-10
CK-RO-3000L	3000	8040	4
CK-RO-4000L	4000	8040	4-6
CK-RO-5000L	5000	8040	5-6
CK-RO-6000L	6000	8040	6-8
CK-RO-8000L	8000	8040	8-10
CK-RO-10000L	10000	8040	12
CK-RO-15000L	15000	8040	16-18
CK-RO-20000L	20000	8040	24-25
CK-RO-30000L	30000	8040	35-40
CK-RO-45000L	45000	8040	50-60
CK-RO-100000L	100000	8040	110-120
CK-RO-200000L	200000	8040	220-240

Operation Specification for Industrial Brackish Water RO Plant

Feed Water TDS > 1000ppm	Hardness over 18ppm needs antiscalant dosing	Turbidity must be removed
Max. Feed Water Temp: 42°C	Operate at higher TDS results in lower recovery	H2S must be removed
pH tolerance: 3-11	Max. iron content: 0.05ppm
Feed Water Pressure: 1.5 to 6 bar	Max. Silica tolerance: 60ppm

Features of Industrial Brackish Water Desalination Plant

Standard Futers	Available Options
Programmable PLC Control	Automatic Flush
Motor Starter	Ozone Generator
Raw Water Feeding/Booster Pump	UV Sterilizer
Stainless Steel Cartridge Filter Housing	Chemical Dosing
FRP Membrane Housing	pH control monitor
Mitsubishi Processor Control	ORP Control monitor
Low-Pressure Switch	Remote Control
High-Pressure Switch	Pretreatment System
Liquid-filled pressure gauge	Post Deionization Unit
Stainless Steel 304 Frame	CIP Membrane cleaning system
Permeate Conductivity Monitor	Touch Screen Control
Raw Water Conductivity Monitor	Tank Level Switch
Membranes	Customer Logo
Control Valves
Stainless Steel/UPVC Piping
