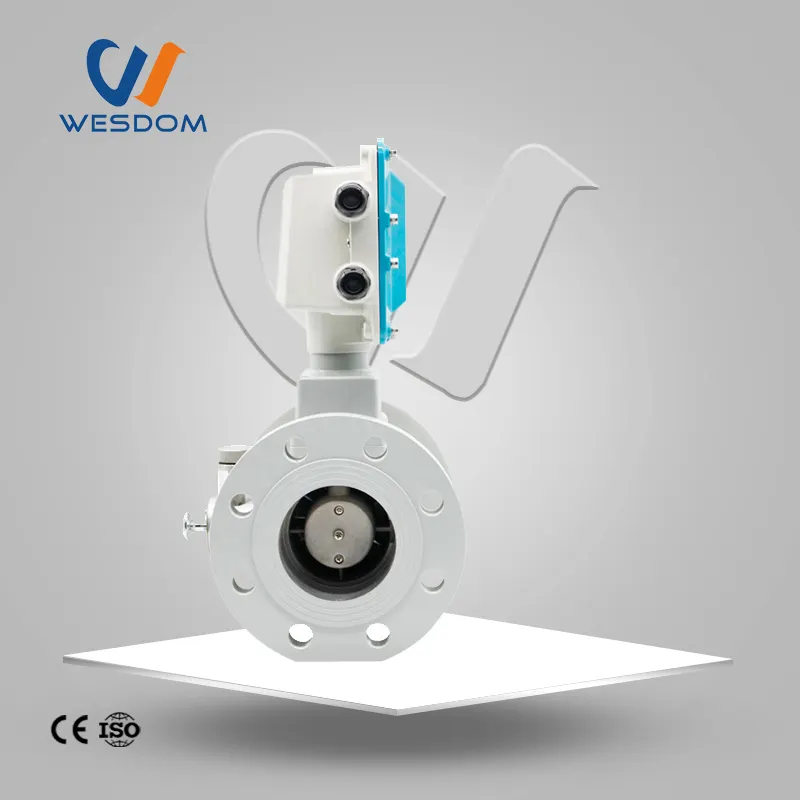

Gas Turbine Flow Meter

(0 reviews)

Get Price

(197) Views

(0) Contacts

Contact Company

WESDOM

Henan, China

(432) Views

(4) Contacts

Description of Flow Meter
WESDOM WG series gas turbine flow meter is a new generation of high-precision and high-reliability gas precision measuring instrument, which is based on the advanced technology of flow meters domestically and abroad. It has excellent low-pressure and high-pressure metering performance, various signal output modes, and low sensitivity to fluid disturbance. It is widely used for natural gas, coal-based gas, liquefied gas, and other gases application.
Installation of Flow Meter
In order to obtain a stable and accurate flow measurement, it is very important that the flow meter is installed correctly in the pipe system
A flow meter needs to be installed on the horizontal pipeline. The inner diameter of the flow meter needs to be as same as the inner diameter of the pipeline, and the axis of the flow meter should be concentric with the axis of the pipeline during installation
Recommend installing indoors. If need to install it outdoors, please make good protection from direct sunlight and rain
In order to ensure the normal use of the medium is not affected when the flow meter is overhauled, a shut-off valve should be installed on the upstream and downstream of the flow meter. A bypass pipeline should be provided. The flow control valve must be installed downstream of the flow meter, and the upstream valve must be fully open when the flow meter is used.
Gas Turbine Flow Meter Maintenance
Gas turbine flow meters need to do oil filling operations regularly to ensure bearings work smoothly. There's an oil filling operation indication on each WESDOM gas turbine flow meter's body. Following the indication to do oil filling regularly is fine.

                                                            Nominal Diameter
                                                            DN25-DN400

                                                            Nominal Pressure
                                                            1.6Mpa/2.5Mpa/4.0Mpa

                                                            Range Ratio
                                                            Max 40:1 (under P-101.325Kpa,T-293.15K)

                                                            Accuracy
                                                            1.5% (Standard), 1.0% (Optional)

                                                            Repeatability
                                                            Better than 0.2%

Application of Flow Meter

The gas turbine flow meter is mainly used for natural gas, LPG, coal gas, etc.
Widely used in various industries of gas metering and gas pressure regulating stations such as petroleum, chemical, electric power, industrial boilers, gas transmission and distribution pipeline networks, and urban natural gas metering.
Water Treatment
Paper Industry
Food Industry
Chemical Monitoring
Pharmaceutical Industry
Metallurgical Industry
Petrochemical
Public Drainage

Advantages of Flow Meter

A gas turbine flow meter is with advanced rectification technology and a dust-proof structure.
It is with built-in temperature and pressure sensors which can achieve automatic compensation to make sure high accuracy.
A gas turbine flow meter provides a good solution for custody transfer between parties.
Compared with the precession vortex flow meter, the gas turbine flow meter is with low-pressure loss, low initiating flow, and a wider measurement range.
The display of the gas turbine flow meter support to the rotation of 350°, easy-to-read data in different dried ions.
