Line Filling Machine

(0 reviews)

Get Price

(191) Views

(0) Contacts

Contact Company

Zhangjiagang City AK Machinery Co., Ltd.

Jiangsu, China

(786) Views

(0) Contacts

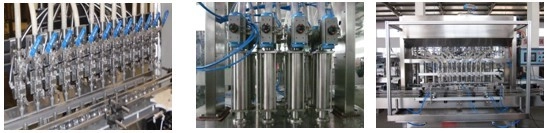

This is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 10000 ml.

                                                            Range
                                                            25-10000ml

                                                            Speed
                                                            ＜120bottles/minute (for 50-500ml)

                                                            Measurement precision
                                                            ±1%

                                                            Contour Sizes
                                                            2000×870×1900mm

                                                            Rated power
                                                            0.8KW

                                                            Working voltage
                                                            220V

                                                            Working air pressure
                                                            6-7kg/cm²

                                                            Air-consuming amount
                                                            0.5m³/minute

                                                            Net weight
                                                            650kg
