Lithium Iron PhospPhater (LiFoePOv4) Battery

(0 reviews)

Get Price

(146) Views

(0) Contacts

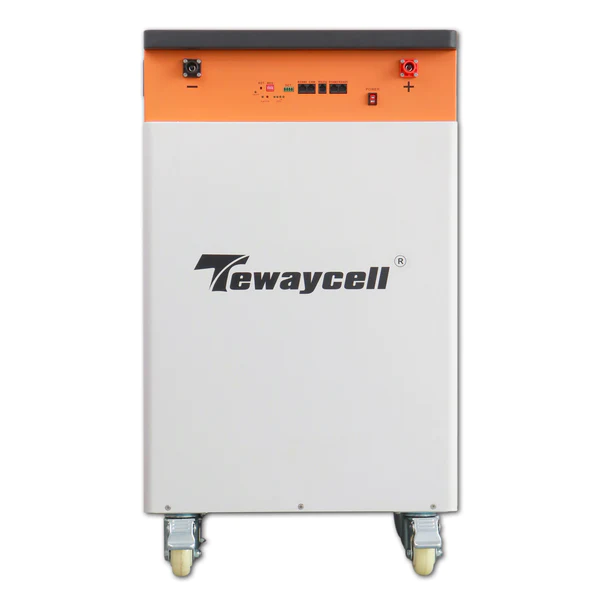

Tewaycell 48V 300Ah 15KWh LiFePO4 Mobile ESS

378,459.52 USD/1 piece

Contact Company

Shenzhen Topway New Energy Co., Ltd

Shenzhen, China

(547) Views

(0) Contacts

                                                            Nominal voltage
                                                            48.0V	51.2V

                                                            Comatible Inverter Brands
                                                            Growatt, Goodwe, SofarSolar, Deye, Voltronic, Victron, SRNE...

                                                            Nominal capacity
                                                            300AH

                                                            Cycle life
                                                            6000+ Cycles @0.2C/0.2C at 90%DOD, Until 70% Capacity.

                                                            Battery power
                                                            14400Wh	15360Wh

                                                            Self discharge
                                                            ≤3.5%/Month

                                                            Charging voltage
                                                            53.2-54V	57-58.4V

                                                            Charging cut-off voltage
                                                            54.75V	58.4V

                                                            Communication Ports
                                                            RS485*3/CAN/RS232

                                                            Standard discharge current
                                                            60A

                                                            Maximum discharge current
                                                            100A

                                                            Maximum pulse current
                                                            200A（＜30S）

                                                            Standard charging current
                                                            60A

                                                            Maximum charging current
                                                            100A

                                                            Maximum discharge power
                                                            4800W	5120W

                                                            Charging temperature
                                                            0°C to 45°C

                                                            Discharging temperature
                                                            -20°C to 60°C

                                                            Dustproof and waterproof rating
                                                            IP55

                                                            Size(L*W*H)
                                                            520x300x900mm

                                                            Net Weight
                                                            125KG	131KG

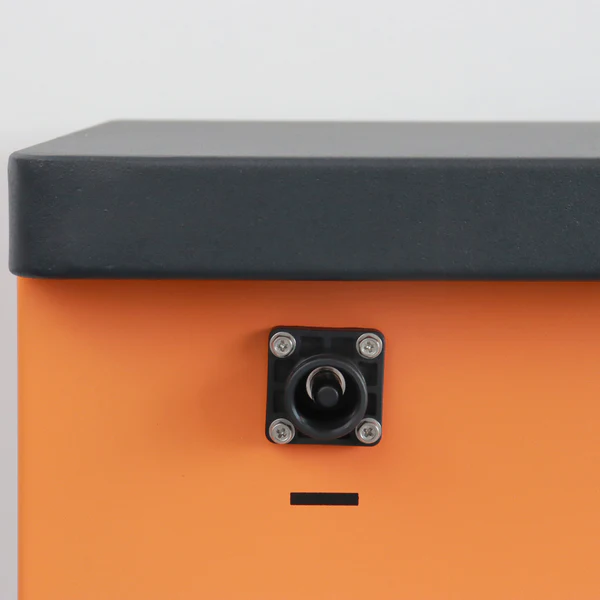

                                                            Connection port
                                                            120A quick self-locking plug

                                                            Shell material
                                                            SPCC

Application
◆ Standby power supply, Home energy storage, Outdoors power station
◆ Solar and wind power generation system

Features
◆ Lithium iron phosphate battery cell technology is used for higher safety. 80%DODcharginganddischarging under standard conditions, more than 6000 cycles
◆ High integrated analog front-end, isolated
power circuit
◆ Integrated serial port IC, high voltage accuracy (≤ 20mV), high current accuracy (≤2%@FS)
◆ 4-circuit battery temperature detection (≤ 2 ℃), SOC estimation function, SOH estimation function

◆ Short circuit protection function, adjustable overcurrent protection, multiple sleep, and wake-up modes, low power consumption
◆ Dual RS485 communication, adjustable parameter setting, buzzer alarm function, LEDstatusindication function, charging equalization function
◆ Wide temperature range: - 20 ℃~60 ℃
◆ Support parallel (up to 15 Sets) application expansion, not recommended for series use
