Screw Pump

(0 reviews)

Get Price

(267) Views

(0) Contacts

1 - 9 pieces
$650.00
>= 10 pieces
$600.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(1338) Views

(6) Contacts

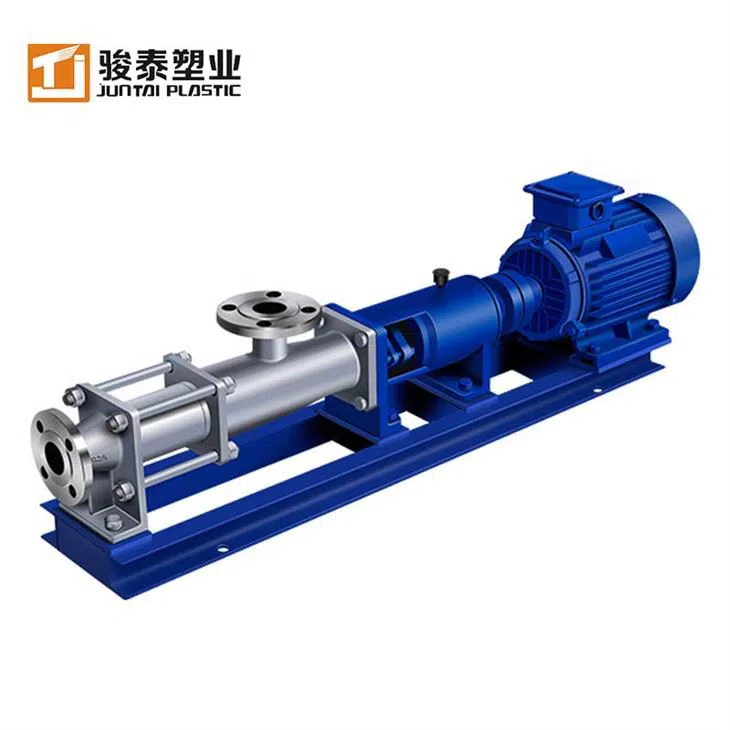

UNAI G SERIES SCREW SLUDGE PUMP
G series single screw pump is a new type of pump that works according to the principle of great rotation mesh volume, the main working parts are the eccentric screw (rotor) and the fixed bushing (stator). Due to the special geometry of the two parts, respectively, the formation of a separate sealed cavity, the medium from the axial uniform implementation of the flow, the internal flow rate is low, the volume remains constant, the pressure is stable, and therefore will not produce eddy current and churning. The output pressure of each pump stage is 0.6MPa, the head is 60m (clear water), and it is suitable for conveying medium temperature below 80℃ (special requirements up to 150℃). Because the stator is made of a variety of elastic materials, this pump is for the transport of high-viscosity fluids and media containing hard suspended particles or media containing fibers, there are general pump types that can not be competent. The flow rate is proportional to the speed. Transmission can use coupling direct transmission or use a speed control motor, v-belt, gearbox, and other devices to change speed. This pump has a few parts, a compact structure, small volume, and easy maintenance, rotor and stator are the wearing parts of this pump, simple structure, and is easy to install and disassemble. Screw Pump application wastewater aerator, anaerobic wastewater treatment system, and primary sewage treatment.

G-TYPE SINGLE SCREW PUMP WORKING PRINCIPLE
The g series single screw pump is a rotor-type volumetric pump, which relies on the screw and the bushing to engage with each other to produce volume changes in the suction and discharge cavities to convey liquid. It is a closed screw pump with internal meshing, and the main working parts consist of a bushing (stator) with a double-headed spiral cavity and a single-headed spiral screw (rotor) meshed with it in the stator cavity. When the input shaft through the universal joint drive rotor around the center of the stator for planetary rotation, the stator-rotor vice continuous engagement to form a sealed cavity, the volume of these sealed cavities is constant uniform axial motion, the transport medium from the suction end through the stator - rotor vice transport to the pressure end, the suction of the media in the closed cavity flow through the stator without being stirred and destroyed.

                                                            Warranty
                                                            3 years, one year

                                                            Customized support
                                                            OEM

                                                            Material
                                                            Cast iron/SS304

                                                            Brand Name
                                                            JUNTAI

                                                            Model Number
                                                            JT-GSP

                                                            Place of Origin
                                                            Anhui, China

                                                            Horsepower
                                                            11-20HP

                                                            Size
                                                            60*25*30CM

                                                            Weight
                                                            32KG

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            High Pressure

                                                            Structure
                                                            SCREW PUMP

                                                            Cable Length
                                                            Custom

                                                            Outlet Size
                                                            Custom

                                                            Voltage
                                                            380V

                                                            Power
                                                            8-15KW

                                                            Certification
                                                            RoHS,ce,IECEE

SCREW SUBMERSIBLE PUMP APPLICATION
1. Primary wastewater treatment, Secondary wastewater treatment, Anoxic environments
2. Wastewater aerator, Phosphorus removal from wastewater, Package wastewater treatment plant
3. Aerobic water treatment, Anoxic zone wastewater treatment, Anaerobic sludge

JUNTAI SCREW SLUDGE PUMP FEATURES
G series single screw pump has a strong self-priming ability, and strong suction height; screw pump parts are less, compact structure, small size, simple maintenance, rotor, and stator a single screw pump wear parts, simple structure, easy to install and disassemble. It is a new type of pump that works according to the principle of the great rotation meshing volume. The eccentric single screw pump's main working parts are an eccentric screw (rotor) and fixed bushing (stator). Using natural rubber or silicone rubber, the working temperature can reach 120 degrees Celsius, if the use of high temperatures of 120 degrees Celsius - 350 degrees Celsius can be contacted with the unit. Due to the special geometry of the two parts of the beginning of the formation of separate sealing cavities. The medium flows uniformly from the axial direction. The internal flow rate is low and the volume remains constant. The pressure is stable, so there is no product vortex and churning. The output pressure of each pump stage is 0.6MPa-1.2MPa, the head is 60m-120m (clear water), and the self-priming height is generally above 3m. It can be used as self-priming sewage pump wastewater treatment plant work
PROGRESSIVE CAVITY SCREW PUMP ADVANTAGES
1, compared with centrifugal pumps, progressive cavity pumps do not need to install valves, and the flow is stable linear flow, which can be better for aeration tank wastewater treatment
2、Compared with pneumatic diaphragm pumps, progressive cavity pumps can convey various mixed impurities containing gas and solid particles or fiber media, and can also convey various corrosive substances, equivalent to the water aeration system
3, compared with gear pumps, progressive cavity pumps can convey high-viscosity substances, so that the cost of water treatment can be reduced
4, and piston pumps, diaphragm pumps, and gear pumps are different, screw pumps can be used for pharmaceutical filling and metering.
