Grit Water Separator

(0 reviews)

Get Price

(244) Views

(0) Contacts

Contact Company

Henan Eco Environmental Protection Equipment Co., Ltd

Henan, China

(1208) Views

(2) Contacts

How does it work?

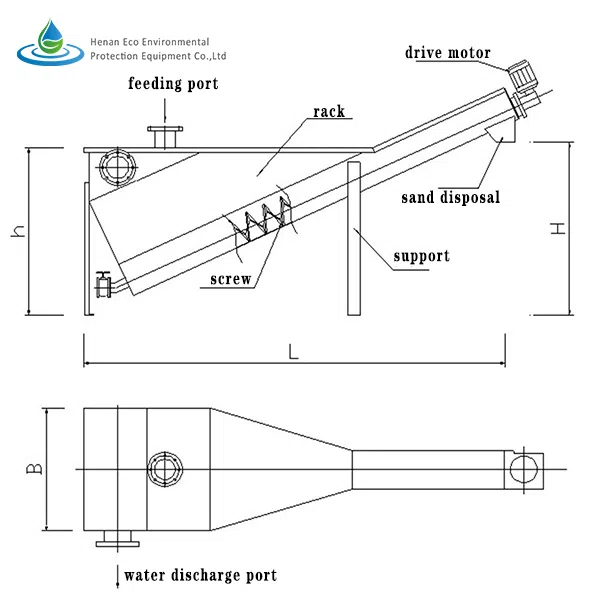

Grit Water Separator is introduced from the top of the separator; heavy particles will be settling down at bottom of the tank. With the moving of the screw blade, this article will be left alone with the screw blade to the top of the screw channel and fall down to the collection bucket. Up clean water will come out from the overflow exit. In addition, a cyclone separator also can be installed at influent.
Parameters

Model	LK-LSSF260	LK-LSSF320	LK-LSSF355	LK-LSSF420
Capacity (L/S)	5~12	12~20	20~27	27~35
Power (kW)	0.37	0.37	0.75	0.75

QK-LSSF Grit Water Separator is used to separate grit-water mixture from grit chamber, widely used in the wastewater treatment plant, food industry and winy and beverage industry, etc

The separation ratio reaches 96%~98%， remove particles with a diameter above 0.2mm
Shaftless screw delivery, more light, and easy maintenance
New-tech reducer, more compact structure and stable working
U-type channel lined with wear strip, simple replacement, and noiseless
Simple installation and operation.
