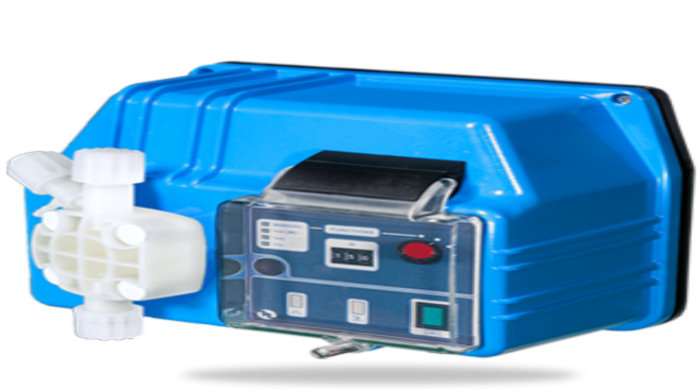

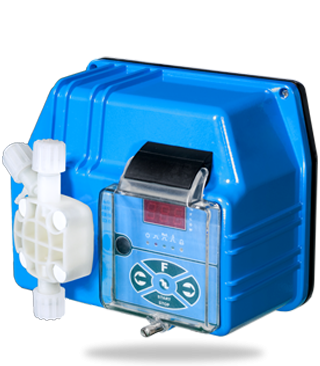

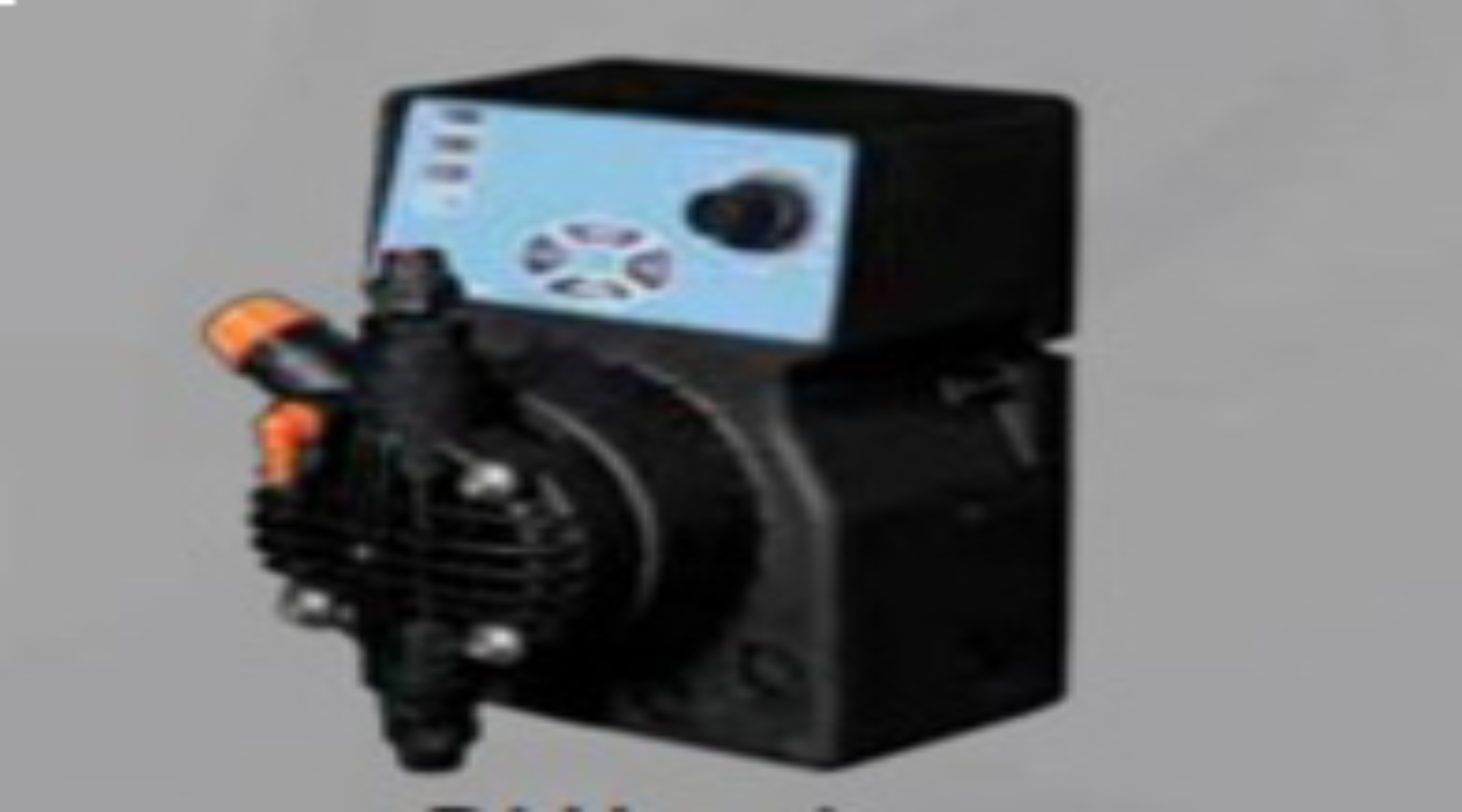

DLX MF/M model consists of a series of microcontroller dosing pumps with pH, RX (mV), free Chlorine control, and a regulation built-in instrument. The high reliability and price competitiveness make the DLX series the best proposal in the dosing systems market. On request, DLXB (foot-mounted) series can be supplied with a stroke length control, which enables - by a dial - to adjust the dosing volume between 20-100%.
Stroke Length Adjustment
The Stroke Length Adjustment mechanism is available for the DLXB foot mounting version only. It allows for regulation of the plunger’s stroke length from 20 to 100% by pressing and turning the knob up to the stroke length adjustment required. This way is possible to adjust the quantity of product delivered for each injection, performing a more accurate dosing
PVDF-FPM Standard Kit
ALL DLX is supplied with a standard PVDF-FPM installation kit, made up of a 2m discharge PE tube (4x6mm), 2m suction + 2m bleeding PVC crystal tube (4x6mm), PVDF foot filter, and PVDF injection valve. Other configurations are available upon request.

Model DLX PH-RX-CL/M

• Anti-acid plastic casing
• IP65 protection degree
• Up to 20 l/h and 20 bar
• Wall (DLX) and Foot mounted (DLXB):
• Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
• Power Supply: 220-240V - 120V (on request)
• Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
• CE (standard) and CSA certified (on request)
• Backlight LCD display
• ON/OFF or proportional operating modes
• pH – RX – Cl inputs. Measuring ranges: 0÷14pH; -1000 ÷ +1400mV; 0÷2ppm; 0÷20ppm; 0÷200ppm; 0÷2000ppm
• Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
• Manual/Automatic Temperature compensation 0÷100°C
• Basic and Full Menu
• Hysteresis
• Delay Setpoint setting
• Relay output
• 4 ÷ 20 mA output
• Level probe input
• Proximity switch input
• Alarm setting
