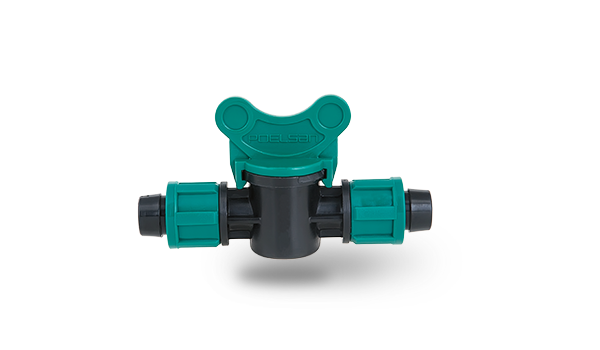

Mini Valve Tape

(0 reviews)

Get Price

(306) Views

(0) Contacts

Samsun, Turkey

(760) Views

(0) Contacts

Installation Instruction

For a proper offtake with the Grommet Gasket, the pipe should be punched 16 mm or 20 mm according to the Mini Valve with Grommet Gasket to be used.
The items with offtake end without gasket are used for joining the Layflat and Low-Density Polyethylene (LDPE) Pipes (Flat Drip Irrigation Pipe) with Round Drip Irrigation Pipes (Ø16 mm & Ø20 mm). For a proper offtake, the pipe should be punched 8 mm.
The Mini Valve Offtake without gasket item is used for the connection offtake from Layflat pipes to 12 mm Microtube Pipes with Ø12 mm Microtube Pipes. For a proper offtake, the pipe should be punched 8 mm.

Specification

Water passage diameter 8 mm.
It has been produced from high-quality polypropylene raw material and it has resistance to impact.
It supplies an easy on-off control of the irrigation system.
They prevent alga and bacteria from forming due to UV-proof (ultraviolet beam) structure.
O-rings are made of rubber and provide leak proofness under high pressure.
It has a homogeneous and non-porous inner surface.
It does not contain any harmful compounds which can change the taste or the smell of the water.
