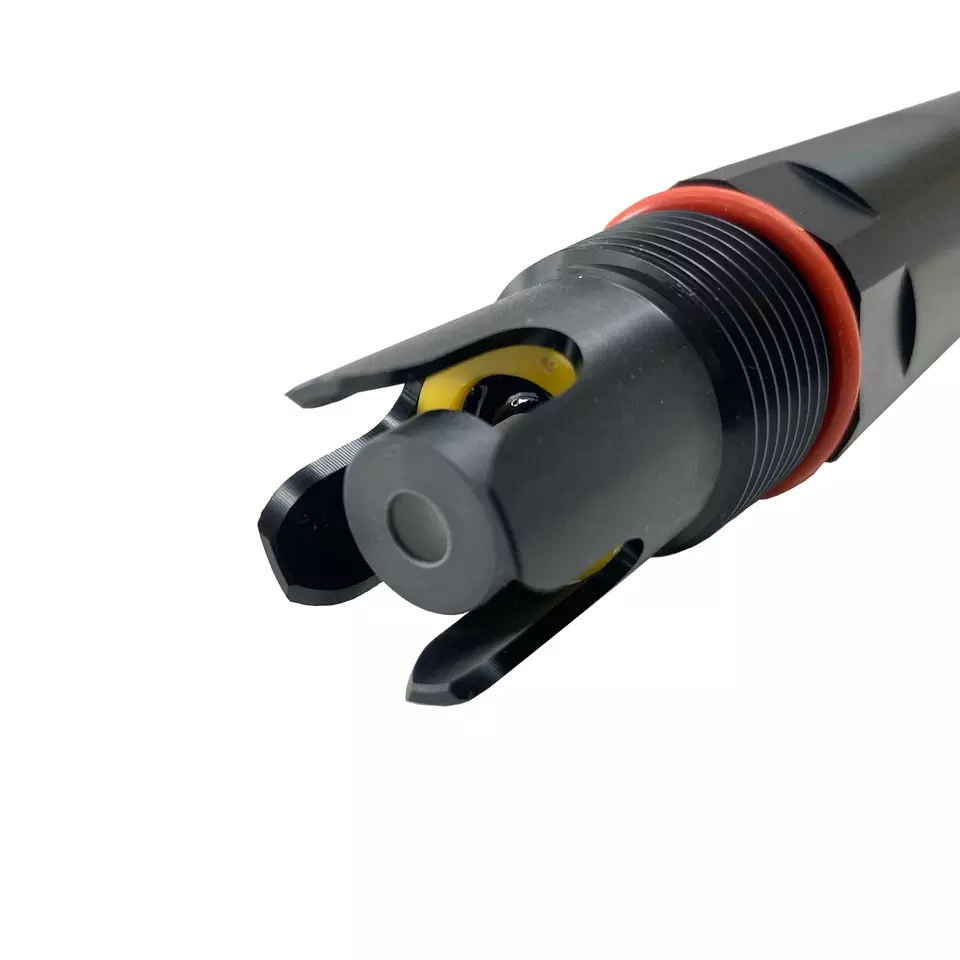

Online Fluoride Ion Sensor

(0 reviews)

Get Price

(337) Views

(0) Contacts

$645.00 / 2 Piece

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(1152) Views

(15) Contacts

The technical parameters, communication protocols, and maintenance of the fluoride ion sensor are described in detail in this manual.
Signal output: RS-485 bus (Modbus/RTU) protocol, convenient to connect to PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen, and other third-party equipment. In the patented fluoride ion probe, the internal reference solution oozes extremely slowly from the microporous salt bridge under the pressure of at least 100KPa (1Bar). Such a reference system is very stable and has a longer electrode life than conventional industrial electrodes.
Easy to install: 3/4 inch NPT pipe thread for easy submersible installation or installation in pipes and tanks.
IP68 protection level.

                                                            Model
                                                            FLU-206A

                                                            Protection grade
                                                            IP68

                                                            Measuring range
                                                            0～100mg/L

                                                            Power consumption
                                                            0.2W@12V

                                                            Resolution
                                                            0.01mg/L

                                                            Calibration method
                                                            Two-point calibration

                                                            Accuracy
                                                            ±10% or ±1mg/L，±0.5℃

                                                            Cable length
                                                            5 meters, can be customized

                                                            Working temp
                                                            0～40℃

                                                            Working pressure
                                                            ＜0.1MPa  pH range of the medium  5～8 pH

                                                            Temperature compensation
                                                            Automatic temperature compensation (Pt1000)

                                                            Power supply
                                                            12～24VDC

                                                            Signal output
                                                            RS-485 bus, Modbus/RTU protocol

                                                            Wetted material
                                                            POM

                                                            Installation method
                                                            3/4"NPT tube thread，immersion mounting

FLU-206A integrated online fluoride ion sensor uses a solid membrane ion-selective electrode for testing free fluoride ions in water with temperature compensation to ensure fast, simple, accurate, and economical testing
