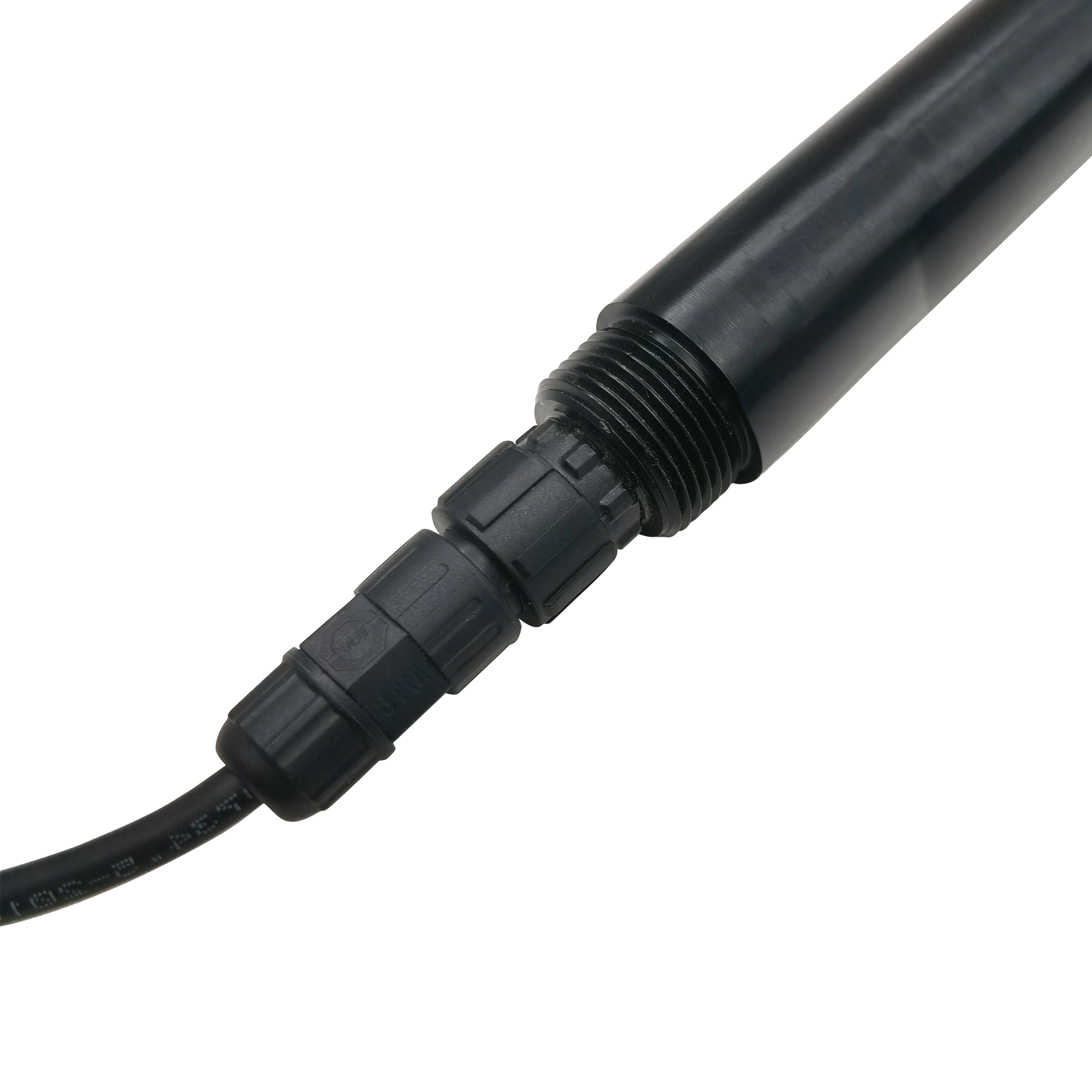

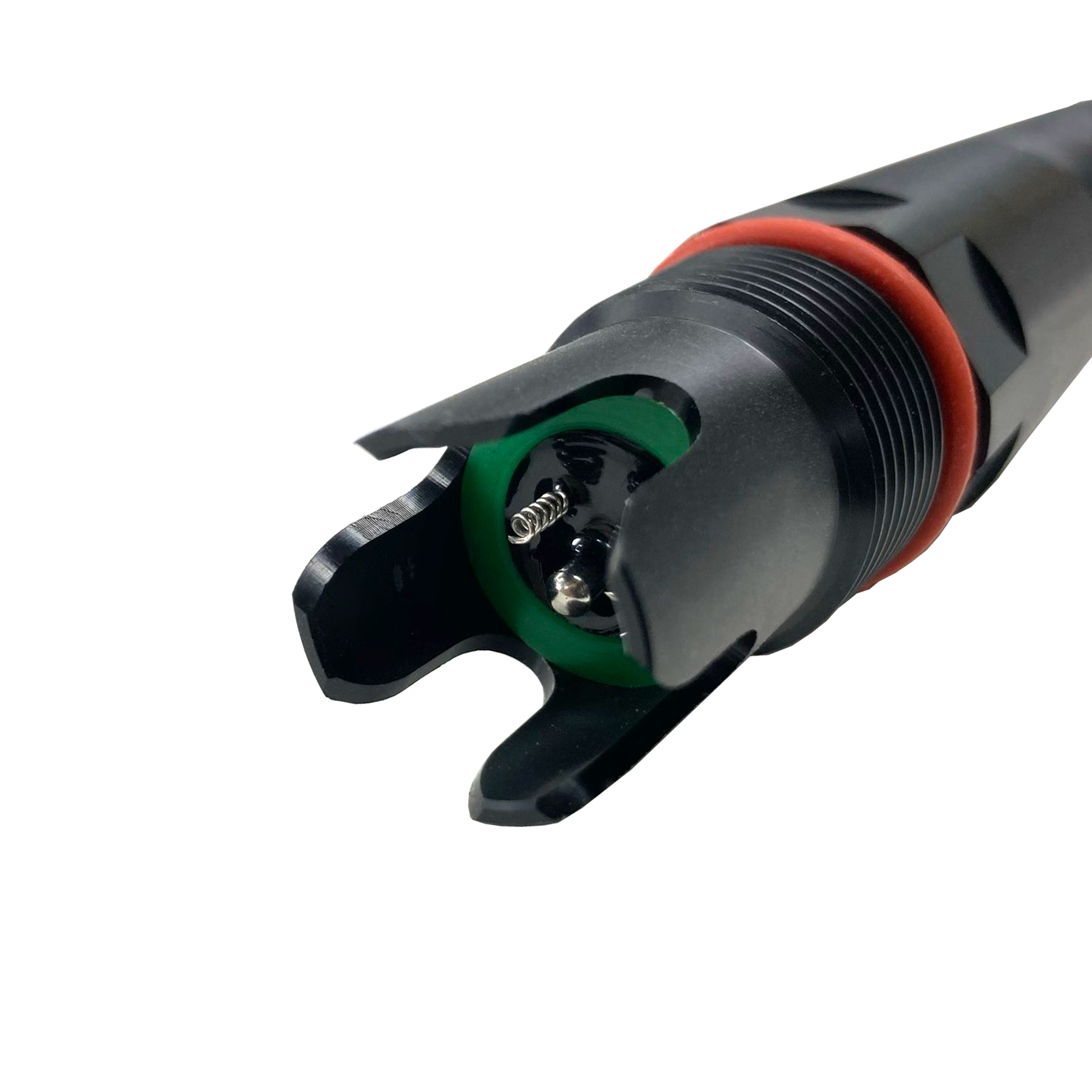

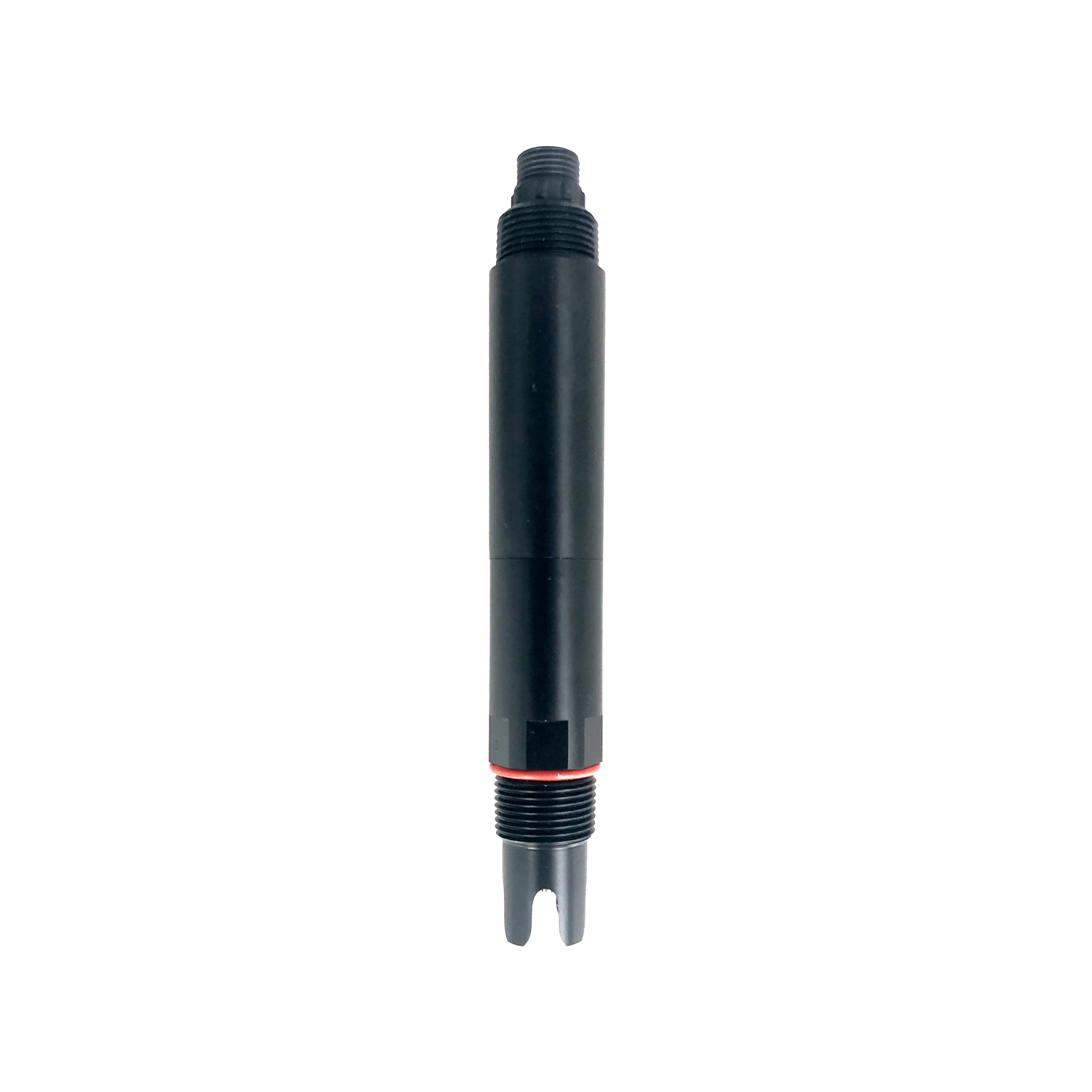

Online Residual Chlorine Sensor

(0 reviews)

Get Price

(267) Views

(0) Contacts

$565.00/ 2 pieces

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(1155) Views

(15) Contacts

                                                            Model
                                                            CL-206A

                                                            Measuring principle
                                                            Constant voltage method

                                                            Protection grade
                                                            IP68

                                                            Range ability
                                                            0～2.000mg/L(HClO)

                                                            Power
                                                            0.2W@12V

                                                            Resolution
                                                            0.001mg/L

                                                            Power supply
                                                            12～24VDC±10%

                                                            Precision
                                                            ±5% or ±0.05mg/L  ±0.5℃

                                                            Response time
                                                            <30S

                                                            Calibration function
                                                            Two-point calibration (zero and slope)

                                                            Flow speed
                                                            30～60L/h

                                                            Working pressure
                                                            ＜0.1MPa  pH range of the medium  4～9 pH

                                                            Dimension
                                                            30×233mm

                                                            Temperature compensation
                                                            Automatic temperature compensation (Pt1000)

                                                            Installation mode
                                                            Circulation pool installation

                                                            Signal output
                                                            RS-485 bus, Modbus/RTU protocol

                                                            Working temperature
                                                            5～50℃

                                                            Material
                                                            POM, polytef

It is used for continuous monitoring of residual chlorine content in aqueous solution in drinking water treatment plants, canning plants, drinking water distribution networks, swimming pools, cooling circulating water, water quality treatment engineering, and so on.
