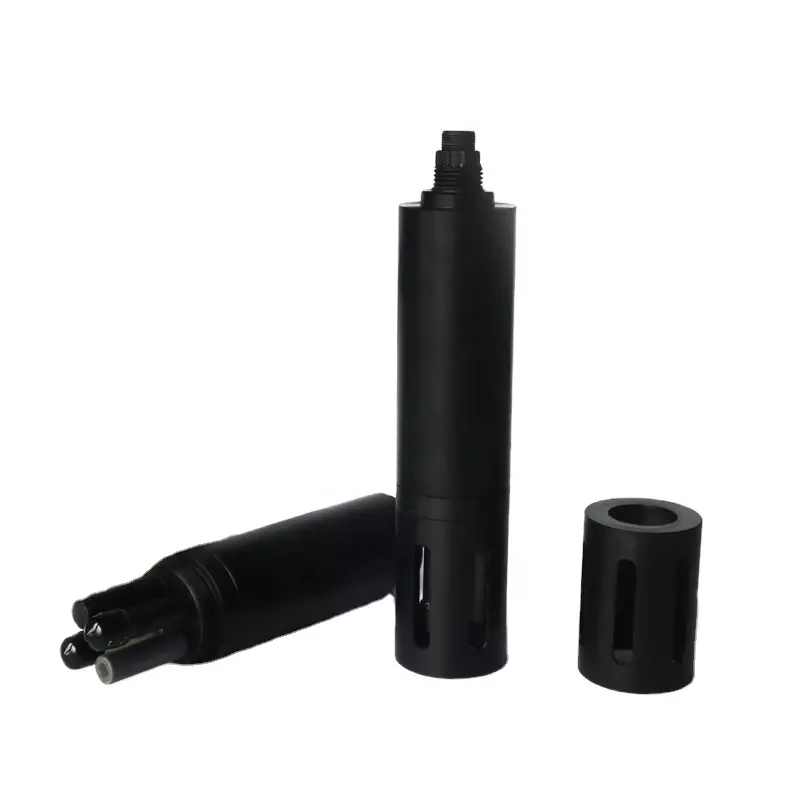

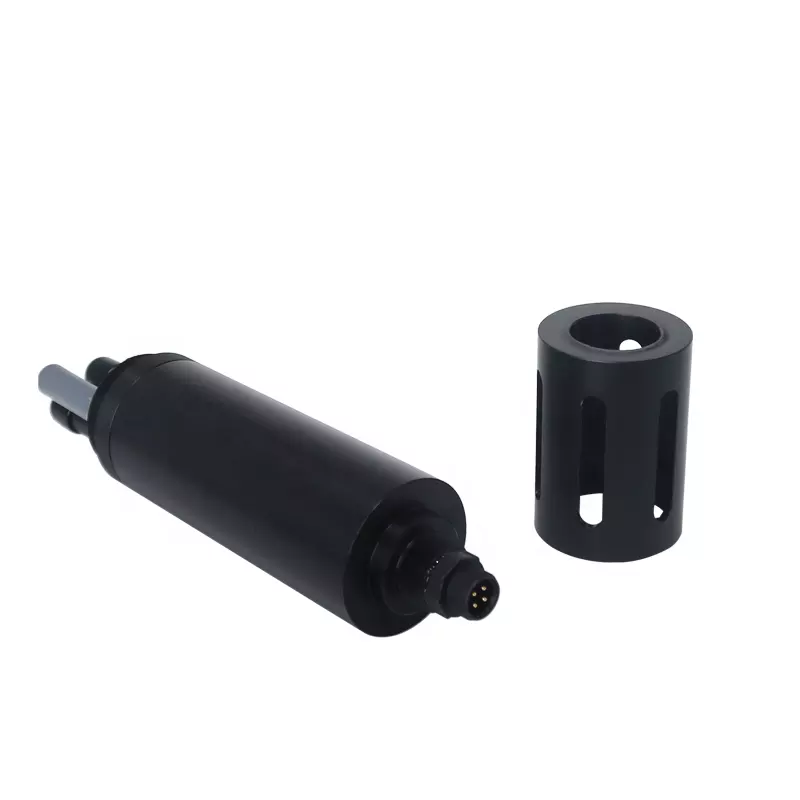

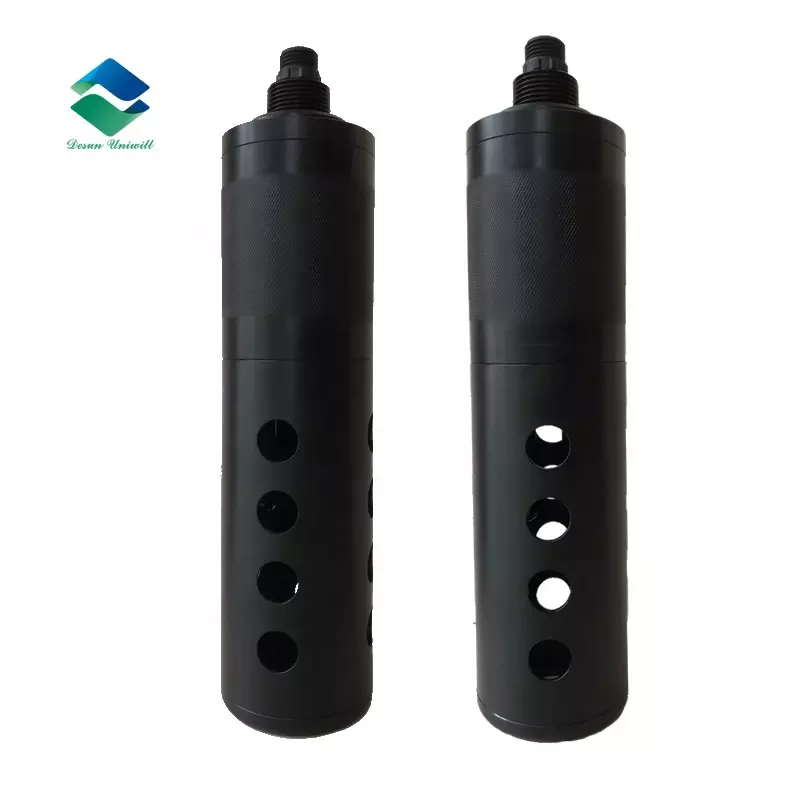

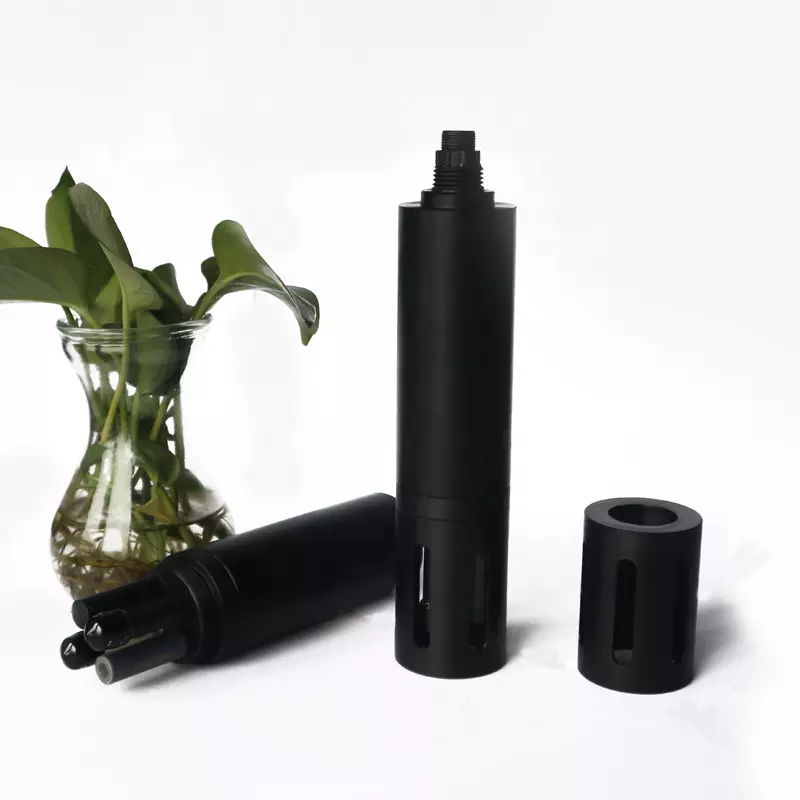

Nitrate Sensor

(0 reviews)

950 USD

(358) Views

(0) Contacts

$950.00/ 1 piece

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(1441) Views

(3) Contacts

Online nitrate sensors, without reagents, green and pollution-free, can be monitored online in real time. It can be installed directly. Compared with the traditional nitrate analyzer, it is more economical, environmentally friendly, convenient, and fast. It adopts RS485 output and supports Modbus, which is convenient for integration.

                                                            Output Signal
                                                            RS-485, MODBUS protocolDigital RS-485 output, MODBUS protocol

                                                            Product name
                                                            Nitrate sensor

                                                            Detection principle
                                                            Electrode method

                                                            Storage temperature
                                                            -20～80℃

                                                            Measurement range
                                                            0-1000mg/L NO3-

                                                            Temperature range
                                                            0～50℃

                                                            Measurement accuracy
                                                            ±5%

                                                            Resolution
                                                            0.1mg/L

                                                            Waterproof level
                                                            IP68

                                                            Under pressure
                                                            3bar

                                                            Power information
                                                            DC 6~12V, current <50mA

                                                            Product material
                                                            316/POM

                                                            Product Size
                                                            Φ48 X 209mm

                                                            Model
                                                            DSN360

                                                            Optional
                                                            Potassium, Sodium

                                                            Cable length

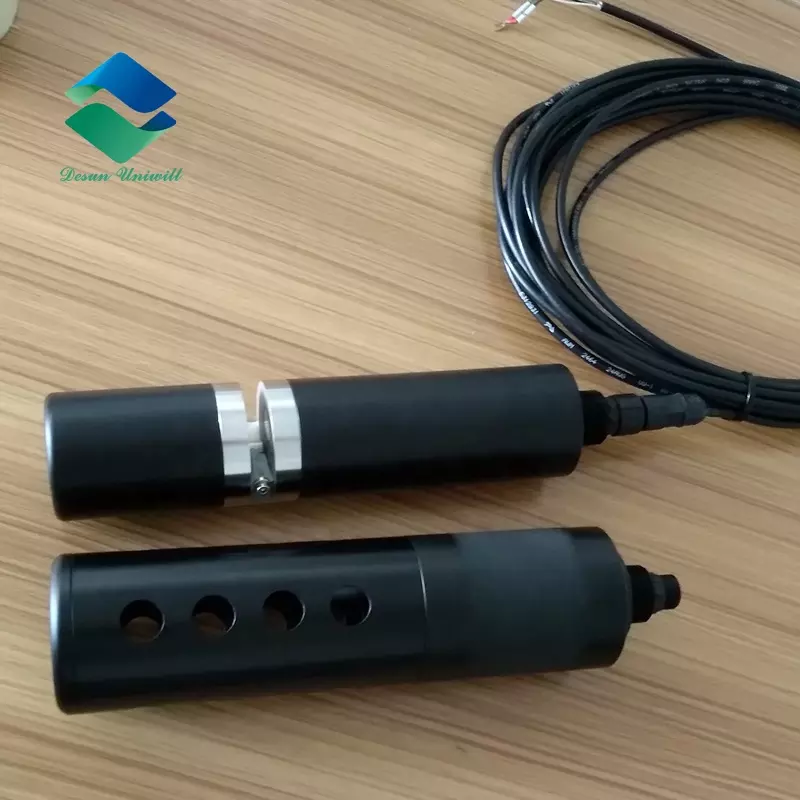

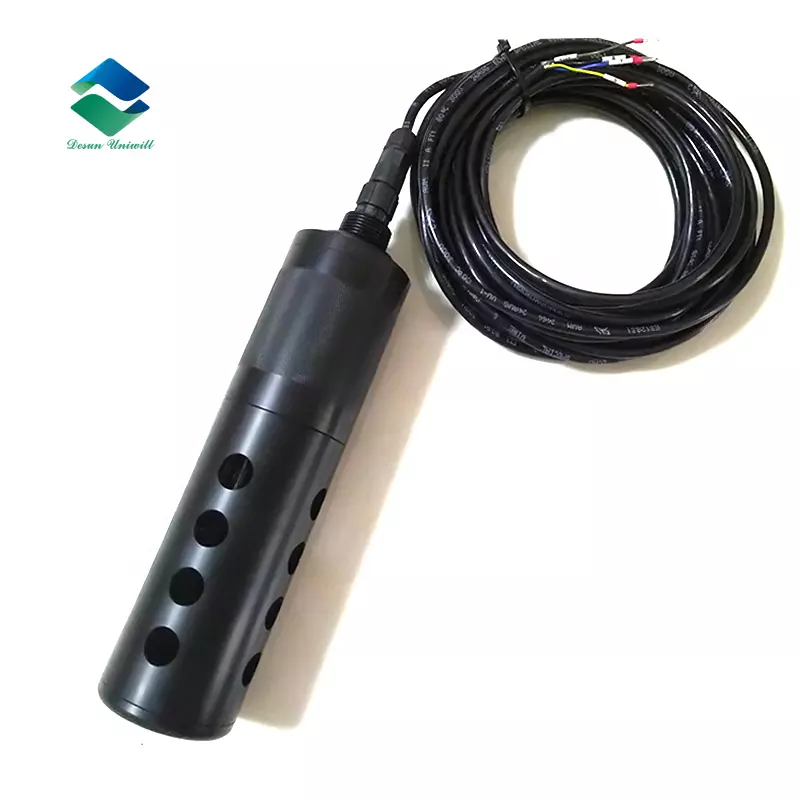

                                                            5 meters (default), can be customized

                                                            Nitrate accuracy
                                                            0.1ppm

                                                            Assembly
                                                            Submersible

No reagents, no pollution, and more economical and environmentally friendly can be monitored online in real-time.
The nitrate sensor has automatic water temperature compensation.
Long-term online use also has good stability.

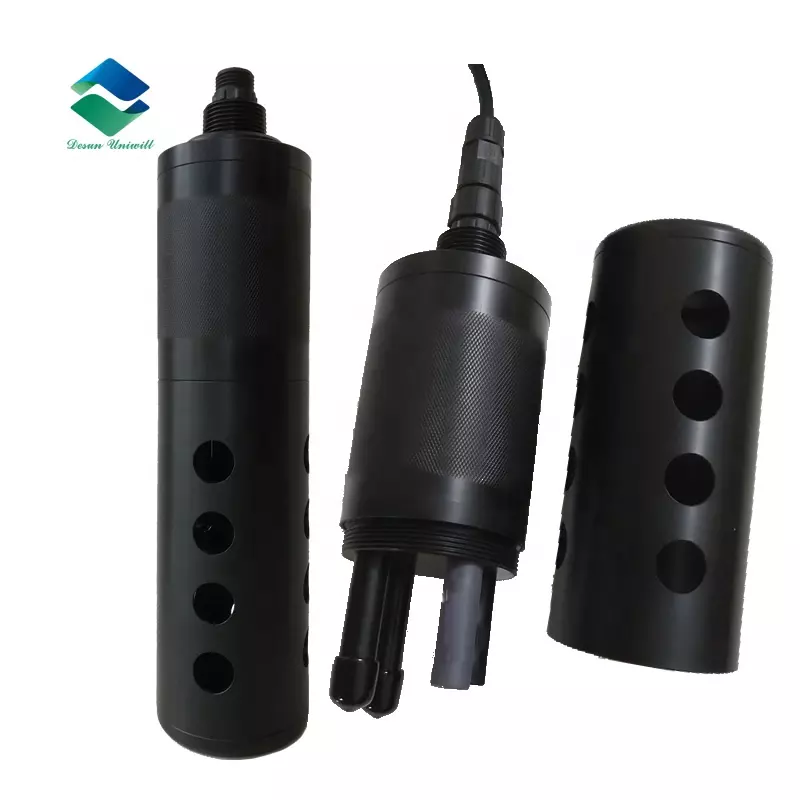

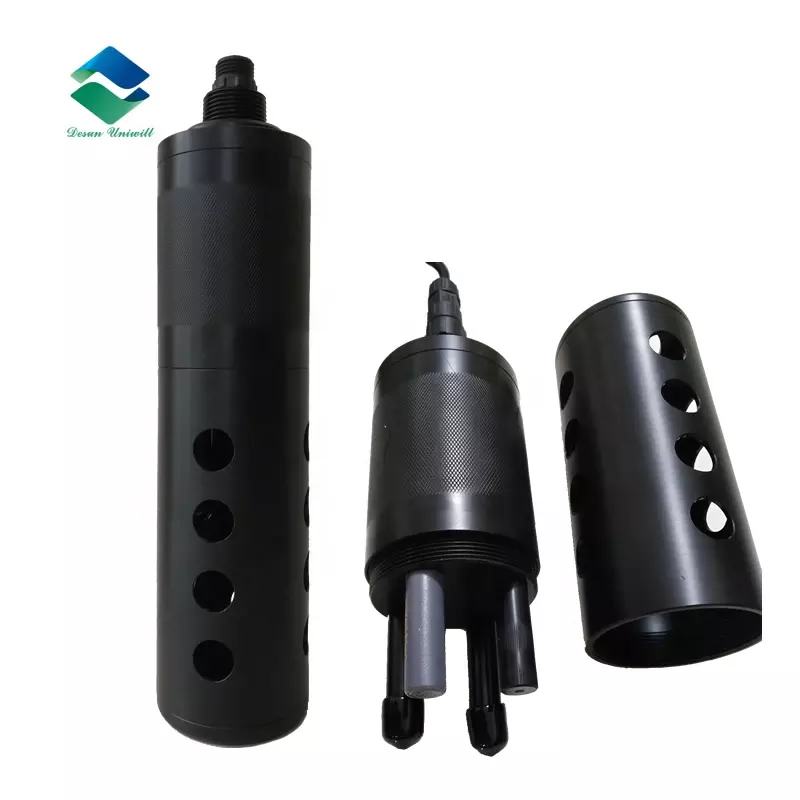

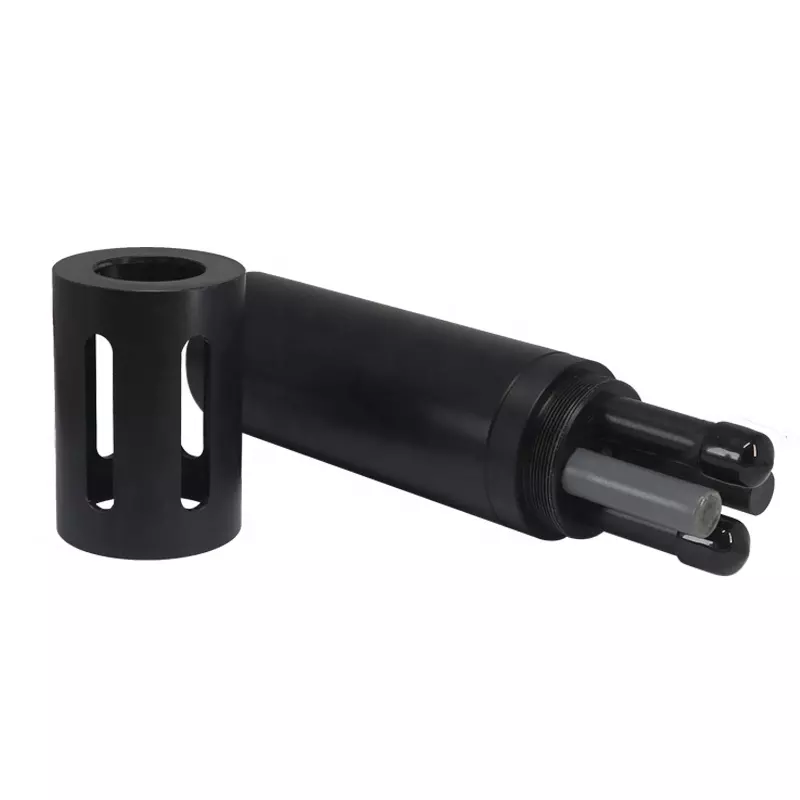

Electrodes can be replaced individually

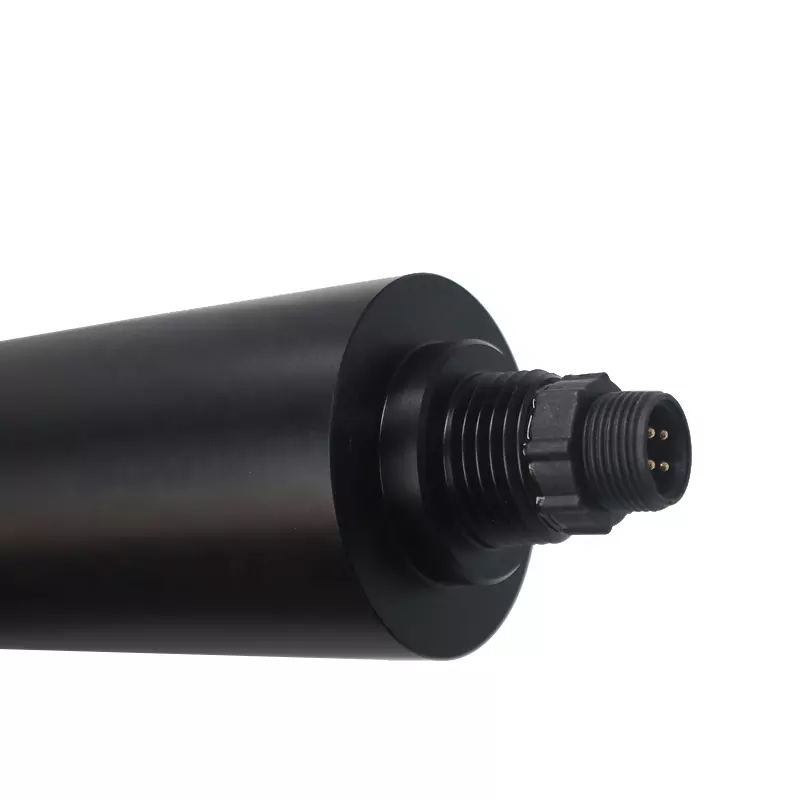

Digital sensor, RS-485 output, support MODBUS
High precision and high stability
